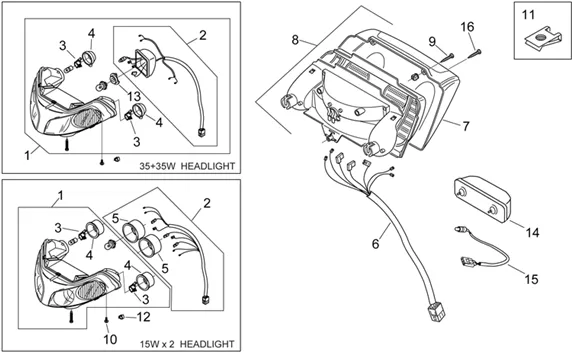

Chassis : 28.27 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.27.PNG)
1 |
Phare avant |
||||||
|
1 |
AP8212999 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
2 |
Câblage feu AV |
||||||
|
2 |
Câblage feu AV+coiffe; |
||||||
|
3 |
Porte-ampoule complet |
||||||
|
4 |
Coiffe phare |
||||||
|
4 |
Coiffe phare; |
||||||
|
5 |
Coiffe phare; |
||||||
|
6 |
Câblage feu AR |
||||||
|
6 |
Câblage feu AR |
||||||
|
7 |
Glace phare AR |
||||||
|
8 |
Feu arrière |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
9 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
10 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
12 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 3 |
||||||
|
13 |
Porte-ampoule complet; |
||||||
|
14 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 RS, 1000 CAPONORD, 125-250-400-500 ATLANTIC/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8212702- More informationQuantity required : 1 |
||||||
|
15 |
AP8212652-WIRING LAMP DE UNDERSEAT COMPARTMENT More informationQuantity required : 1 |
||||||
|
16 |
Vis |
