Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

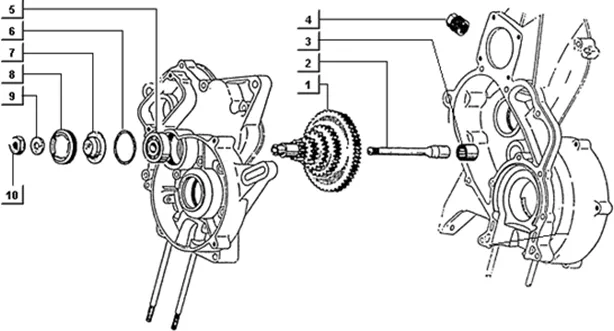

Moteur : T8 ENGRENAGE MULTIPLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T8_20251008091008.PNG)
1 |
1782254 GEAR More informationQuantity required : 1 |
||||||
|
2 |
1697284 PIVOT ENG MULTIPLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/6/8/img/112868.jpg)
3 |
CAGE A AIGUILLES HUB FRONT OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >, TM703 FUEL-090457 More informationQuantity required : 1 |
||||||
|
4 |
235218 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/7/img/65627.jpg)
5 |
BEARING (15X42X13) BOX OF SPEED OEM PIAGGIO 125 PX VESPA/THREE-WHEELER APE FUEL TM 703, CAR, CALESSINO 2007 > 2012, CLASSIC 2006 > 2017-030209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/2/6/img/112226.jpg)
6 |
O-RING (41X2. 62) OEM PIAGGIO COMMON A LA RANGE-180379 More informationQuantity required : 1 |
||||||
|
7 |
159015 CUP More informationQuantity required : 1 |
||||||
|
8 |
0787854 BUSH More informationQuantity required : 1 |
||||||
|
9 |
078783 WASHER More informationQuantity required : 1 |
||||||
|
10 |
015202 - ECROU S01520200 More informationQuantity required : 1 |
