Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

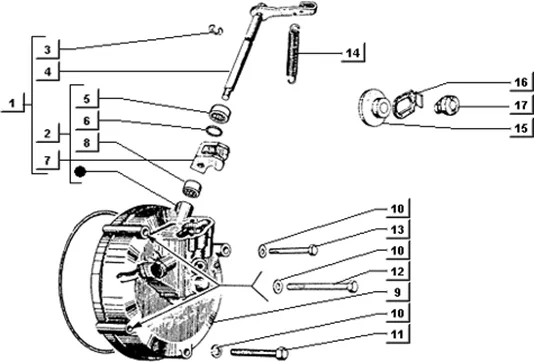

Moteur : T12 COUVERCLE D'EMBRAGUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T12_20251008090717.PNG)
1 |
2212005 COVER CLUTCH More informationQuantity required : 1 |
||||||
|
2 |
2212015 COVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
3 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
|
4 |
2217361-LEVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/4/4/img/112144.jpg)
5 |
CAGE A AIGUILLES ARTICULATION BARRE DE STEERING OEM PIAGGIO 125-250-300-400-500 MP3-167016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/8/8/img/113988.jpg)
6 |
BUSH ETANCHEITE DE BARRE STEERING (12X16X3) OEM PIAGGIO 125-250-300-400-500 MP3/GILERA 500 FUOCO-167018 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
167017 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
078795 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
10 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 4 |
||||||
|
11 |
BUSELURE POMPE A HUILE AF-ATM |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/7/1/img/110571.JPG)
12 |
BOLT SERRAGE (7X60) OEM PIAGGIO-015561 More informationQuantity required : 2 |
||||||
|
13 |
015656 SCREW S01565600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/9/6/img/111896.jpg)
14 |
SPRING LEVER CLUTCH OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-112258 More informationQuantity required : 1 |
||||||
|
15 |
133425 POUSSOIR More informationQuantity required : 1 |
||||||
|
16 |
1451045 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
17 |
144408 - NOIX EMB More informationQuantity required : 1 |
