Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

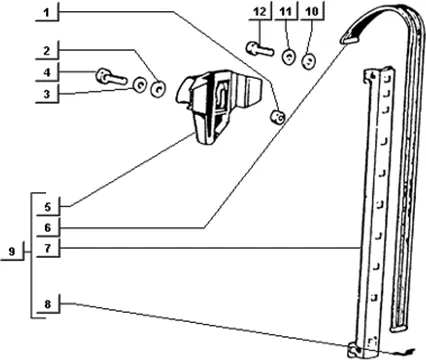

Châssis : T40 LEVE-GLACE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T40_20251008091240.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
1 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
2 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
3 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
4 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 4 |
||||||
|
4 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 4 |
||||||
5 |
212540 GRIP LEVE GLACE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/4/5/img/115845.jpg)
6 |
BELT/SANGLE LEVE VITRE OEM PIAGGIO THREE-WHEELER APE TM 703-213749 More informationQuantity required : 2 |
||||||
|
7 |
216524 GUIDE More informationQuantity required : 2 |
||||||
|
8 |
212571 SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/5/0/img/120950.jpg)
9 |
1944505 DISPOSITIF LEVE GLACE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
10 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 8 |
||||||
|
11 |
003055-WASHER More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
12 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 8 |
