Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004 PIAGGIO VU

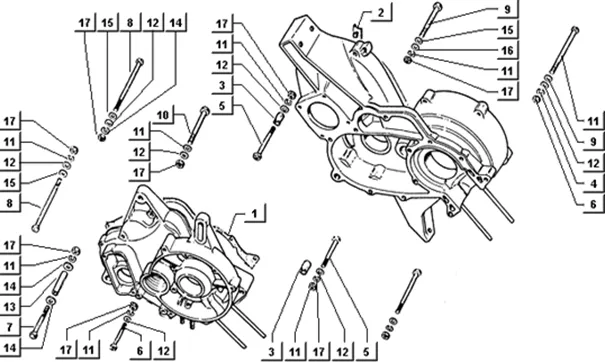

Moteur : T3 FIXATIONS CARTER
Fixations carter
Search
169801 - JOINT DEMI CARTER

1
P2R reference P2R reference 112145
Maker reference Maker reference 169801
Replaced by référence Replaced by référence 114579

169801 - JOINT DEMI CARTER

More information

Quantity required : 1

115608 - TAMPON

2
P2R reference P2R reference 112013
Maker reference Maker reference 115608

115608 BUFFER

More information

Quantity required : 1

005437 - TUBE S00543700

3
P2R reference P2R reference 112023
Maker reference Maker reference 0054375

005437 TUBE S00543700

More information

Quantity required : 2

BOLT DE CASING ENGINE OEM PIAGGIO 125 VESPA PX (7X80)-008419

4
P2R reference P2R reference 63852
Maker reference Maker reference 0084195

BOLT DE CASING ENGINE OEM PIAGGIO 125 VESPA PX (7X80)-008419

More information

Quantity required : 3

008327 - BOULON S00832700

5
P2R reference P2R reference 110543
Maker reference Maker reference 0083275

008327 BOLT S00832700

More information

Quantity required : 5

BOULON

6
P2R reference P2R reference
Maker reference Maker reference 239151

BOULON

BOLT SERRAGE (7X60) OEM PIAGGIO-015561

7
P2R reference P2R reference 110571
Maker reference Maker reference 0155615

BOLT SERRAGE (7X60) OEM PIAGGIO-015561

More information

Quantity required : 1

CASING SCREW ENGINE OEM PIAGGIO THREE-WHEELER APE TM703 FUEL-008415

8
P2R reference P2R reference 113260
Maker reference Maker reference 0084155

CASING SCREW ENGINE OEM PIAGGIO THREE-WHEELER APE TM703 FUEL-008415

More information

Quantity required : 4

9
P2R reference P2R reference
Maker reference Maker reference 0084115

BOLT DE CASING ENGINE OEM PIAGGIO 125 VESPA PX (7X80)-008419

10
P2R reference P2R reference 63852
Maker reference Maker reference 0084195

BOLT DE CASING ENGINE OEM PIAGGIO 125 VESPA PX (7X80)-008419

More information

Quantity required : 3

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

11
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

More information

Quantity required : 20

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

12
P2R reference P2R reference 63778
Maker reference Maker reference 0030575

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

More information

Quantity required : 18

005433 - GOUJON S00543300

13
P2R reference P2R reference 111498
Maker reference Maker reference 0054335

005433 STUD S00543300

More information

Quantity required : 1

14
P2R reference P2R reference
Maker reference Maker reference 0061335

077713 - RONDELLE

15
P2R reference P2R reference 110993
Maker reference Maker reference 0777135

077713 WASHER

More information

Quantity required : 6

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

16
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 1

NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107

17
P2R reference P2R reference 65462
Maker reference Maker reference 0201075

NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107

More information

Quantity required : 17
