Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004 PIAGGIO VU

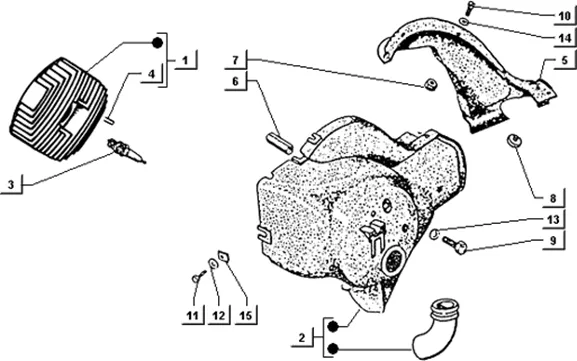

Moteur : T7 CULASSE-COIFFE DE REFROIDISSEMENT
Culasse-coiffe de refroidissement
Search
2886712 - CULASSE

1
P2R reference P2R reference 122434
Maker reference Maker reference 2886712

2886712 CYLINDER HEAD

More information

Quantity required : 1

COOLER COVER "PIAGGIO GENUINE PART" APE TM 703 -231308-

2
P2R reference P2R reference 119656
Maker reference Maker reference 231308

COVER/COIFFE DE COOLING OEM PIAGGIO THREE-WHEELER APE FUEL TM 703-231308

More information

Quantity required : 1

SPARK PLUG CHAMPION P82M/L82C OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 > 2007/CIAO MIX, VESPA 50 FL2-438070

3
P2R reference P2R reference 66526
Maker reference Maker reference 438070

SPARK PLUG CHAMPION P82M/L82C OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 > 2007/CIAO MIX, VESPA 50 FL2-438070

More information

Quantity required : 1

SPARK PLUG CHAMPION RL78C OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, TM 703 FUEL 2000 > 2016-438049

3
P2R reference P2R reference 113276
Maker reference Maker reference 438049

SPARK PLUG CHAMPION RL78C OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, TM 703 FUEL 2000 > 2016-438049

More information

Quantity required : 1

RENIFLARD

4
P2R reference P2R reference
Maker reference Maker reference 162391

RENIFLARD

224622 - BOITIER

5
P2R reference P2R reference 116856
Maker reference Maker reference 224622

224622 - BOITIER

More information

Quantity required : 1

244998 - ECROU

6
P2R reference P2R reference 114453
Maker reference Maker reference 244998

244998 NUT

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

7
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

195700 - TAMPON

8
P2R reference P2R reference 65819
Maker reference Maker reference 195700

195700 - TAMPON

More information

Quantity required : 1

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

9
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 1

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-015946

10
P2R reference P2R reference 65405
Maker reference Maker reference 0159465

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-015946

More information

Quantity required : 6

SCREW AUTOTARAUDEUSE (4. 5X18) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008987

11
P2R reference P2R reference 110427
Maker reference Maker reference 0089875

SCREW AUTOTARAUDEUSE (4. 5X18) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008987

More information

Quantity required : 1

WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021

12
P2R reference P2R reference 63788
Maker reference Maker reference 0040215

WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021

More information

Quantity required : 1

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

13
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 1

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

14
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

More information

Quantity required : 5

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414

15
P2R reference P2R reference 111156
Maker reference Maker reference CM017414

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414

More information

Quantity required : 1
