Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

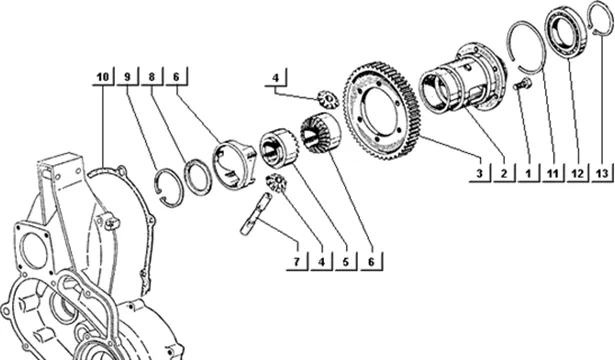

Moteur : T16 DIFFERENTIEL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T16_20251008090746.PNG)
1 |
168065 - VIS More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/0/img/151140.jpg)
2 |
HOUSING DE DIFFERENTIEL OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >, TM 703 FUEL 1997 > 2016-288730 More informationQuantity required : 1 |
|||||||||
|
3 |
COURONNE |
|||||||||
|
4 |
PIGNON |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/5/3/img/121953.jpg)
5 |
1321364 - PLANETAIRE More informationQuantity required : 2 |
|||||||||
|
6 |
132244 MOUNTING More informationQuantity required : 1 |
|||||||||
|
7 |
1321291 PIVOT More informationQuantity required : 1 |
|||||||||
|
8 |
220575 WASHER More informationQuantity required : 1 |
|||||||||
|
9 |
132134 BUSH More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/1/2/img/114612.jpg)
10 |
GASKET TRANSMISSION REAR OEM PIAGGIO THREE-WHEELER APE FUEL TM703 1989 > 2007-873221 More informationQuantity required : 1 |
|||||||||
|
11 |
111353 CIRCLIPS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/4/7/img/119247.jpg)
12 |
BEARING HOUSING DIFFERENCIEL OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >, TM 703 FUEL-007066 More informationQuantity required : 1 |
|||||||||
|
13 |
006450 CIRCLIPS S00645000 More informationQuantity required : 1 |
|||||||||
