Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

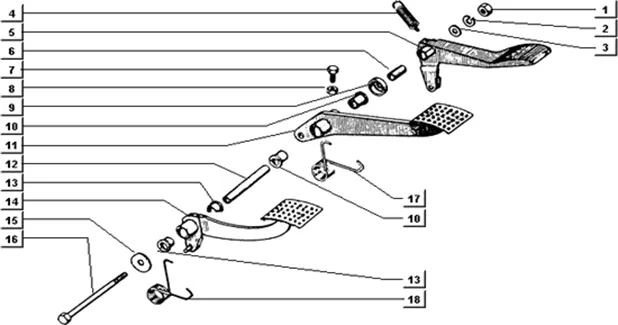

Transmisisons : T79 PEDALIER (P703V)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T79_20251008092447.PNG)
1 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 1 |
||||||
|
1 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
2 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
3 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
4 |
125354 SPRING More informationQuantity required : 1 |
||||||
|
5 |
253301 - PEDALE GAZ More informationQuantity required : 1 |
||||||
|
6 |
1253554 SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
7 |
SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
8 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
||||||
|
9 |
125344 WASHER More informationQuantity required : 1 |
||||||
|
10 |
116310 BUSH More informationQuantity required : 2 |
||||||
|
11 |
253288 - PEDALE FREIN More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
ENTRETOISE |
||||||
|
13 |
125352 BUSH More informationQuantity required : 2 |
||||||
|
14 |
253297 PEDALE CLUTCH More informationQuantity required : 1 |
||||||
|
15 |
118563-WASHER More informationQuantity required : 1 |
||||||
|
16 |
030088-SCREW S03008800 More informationQuantity required : 1 |
||||||
|
17 |
125353 SPRING More informationQuantity required : 1 |
||||||
|
18 |
137113 SPRING More informationQuantity required : 1 |
