Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

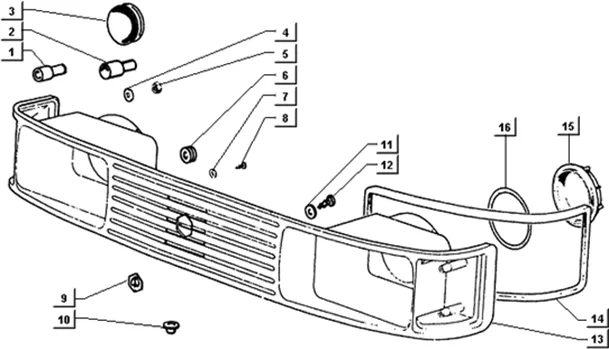

Châssis : T42 PROTECTION-PORTE-PROJECTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T42_20251008092556.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/2/img/65662.jpg)
1 |
CAPUCHON ISOLANT OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL 1989 > 2007-073943 More informationQuantity required : 2 |
||||||
2 |
197370 COVER ISOLANT More informationQuantity required : 2 |
||||||
|
3 |
197369 GASKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
5 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 4 |
||||||
|
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
7 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
8 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 4 |
||||||
|
9 |
ECUSSON PIAGGIO |
||||||
|
9 |
565707 ECUSSON More informationQuantity required : 1 |
||||||
|
10 |
128009-CAPSULE More informationQuantity required : 2 |
||||||
|
11 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
12 |
SCREW CRUCIFORME (3. 5X9. 5) TARAUD OEM PIAGGIO COMMON A LA RANGE-121668 More informationQuantity required : 8 |
||||||
|
13 |
CALANDRE FRONT OEM PIAGGIO THREE-WHEELER APE TM 703 1989 >-5656646 More informationQuantity required : 1 |
||||||
|
14 |
214134 - JOINT More informationQuantity required : 2 |
||||||
|
15 |
213809 - COUVERCLE More informationQuantity required : 2 |
||||||
|
16 |
213793 - JOINT More informationQuantity required : 2 |
All the exploded views of this vehicle
-
