Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

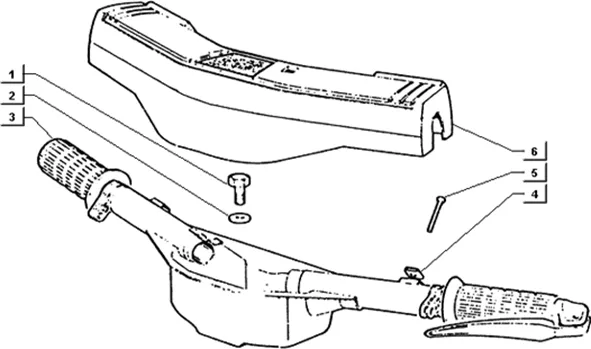

Guidon : T46 GUIDON (P703)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T46_20251008092229.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
1 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/3/9/img/114139.jpg)
1 |
177507 LEVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/6/2/img/113462.jpg)
1 |
POIGNEES (PAIRE) OEM PIAGGIO THREE-WHEELER APE TM 703-493955 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
2 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/4/img/65774.jpg)
2 |
WASHER PLATE (22. 3X29X0. 8) DE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703-177147 More informationQuantity required : 1 |
||||||
2 |
225300 - COMMODO GAZ More informationQuantity required : 1 |
||||||
|
3 |
2252935 - GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/5/img/65775.jpg)
3 |
WASHER SPRING (22. 3X29X0. 8) DE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703, VESPA 50 FL2-177148 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/2/img/65692.jpg)
3 |
AGRAFE/CLIPS CONTROL DE THROTTLE OEM PIAGGIO THREE-WHEELER APE TM 703 WITH HANDLEBAR-101481 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
4 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
||||||
|
4 |
AGRAFE/CLIPS CONTROL DE THROTTLE OEM PIAGGIO THREE-WHEELER APE TM 703 WITH HANDLEBAR-101481 More informationQuantity required : 1 |
||||||
|
4 |
WASHER SPRING (22. 3X29X0. 8) DE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703, VESPA 50 FL2-177148 More informationQuantity required : 1 |
||||||
|
5 |
216468 SCREW More informationQuantity required : 2 |
||||||
|
5 |
225296 - TUYAU More informationQuantity required : 1 |
||||||
|
5 |
WASHER PLATE (22. 3X29X0. 8) DE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703-177147 More informationQuantity required : 1 |
||||||
|
6 |
261437 HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
6 |
Support tableau de bord |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/2/8/img/112928.jpg)
6 |
GRIP LEFT HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703-225298 More informationQuantity required : 1 |
||||||
|
6 |
235008 - LEVIER COMM DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
7 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
|
8 |
177141 COIN More informationQuantity required : 1 |
||||||
|
9 |
177132 SPRING More informationQuantity required : 1 |
||||||
|
10 |
17789109 DOOR LEVER More informationQuantity required : 1 |
||||||
|
11 |
2654624 - LEVIER EMBRAYAYGE More informationQuantity required : 1 |
||||||
|
12 |
016343 WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/6/img/127166.jpg)
13 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-1A003053 More informationQuantity required : 1 |
||||||
|
14 |
568505 SECTEUR More informationQuantity required : 1 |
All the exploded views of this vehicle
-
