Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
Châssis : T34 PARESOLEIL-BRAVOLET
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T34_20251008092504.PNG)

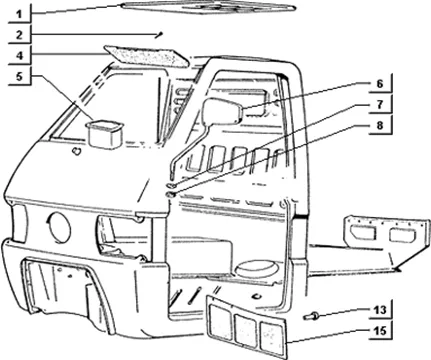

1 |
565929 - PANNEAU PAVILLON More informationQuantity required : 1 |
||||||
|
1 |
PAVILLON CABINE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
2 |
SCREW PARKER (4. 8X9. 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008265 More informationQuantity required : 2 |
||||||
|
4 |
264520 - PARE SOLEIL More informationQuantity required : 1 |
||||||
|
4 |
565810 PROTECTOR SOLEIL More informationQuantity required : 2 |
||||||
|
4 |
658230 - PARE SOLEIL More informationQuantity required : 1 |
||||||
|
5 |
178745 CENDRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/2/9/4/img/108294.jpg)
6 |
LEFT MIRROR OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 > 2017, POKER, TM 703-612343 More informationQuantity required : 1 |
||||||
|
6 |
216896 MIRROR G EX 216967 * More informationQuantity required : 1 |
||||||
|
6 |
216897 - RETROVISEUR D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/3/3/img/116433.jpg)
6 |
LEFT MIRROR OEM PIAGGIO THREE-WHEELER APE 50 MIX 1998 > 2008-565061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
8 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 4 |
||||||
|
13 |
244474 RIVET More informationQuantity required : 4 |
||||||
|
15 |
214485 BAVOLET More informationQuantity required : 1 |
||||||
|
16 |
611763 PARACALORE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
