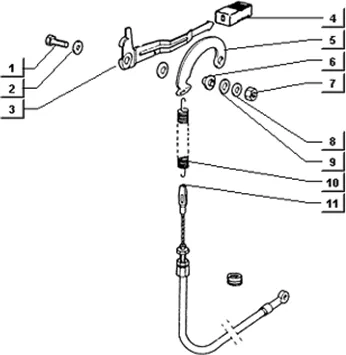

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
Transmisisons : T71 TRANSMISSIONS COMMANDE M.A
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T71_20251008092411.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
1 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
2 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 1 |
||||||
3 |
LEVER STEP REAR OEM PIAGGIO THREE-WHEELER APE TM 703 1989 >-1E004541 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/3/0/img/111930.jpg)
4 |
GRIP RECOUVREMENT LEVER DE STEP REAR OEM PIAGGIO THREE-WHEELER APE TM 703-213686 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/7/2/img/114072.jpg)
5 |
LEVER TRANSMISSION STEP REAR OEM PIAGGIO THREE-WHEELER APE TM 703-213683 More informationQuantity required : 1 |
||||||
|
6 |
ENTRETOISE |
||||||
|
6 |
BUSH OEM PIAGGIO CONTROL STEP REAR OEM PIAGGIO THREE-WHEELER APE TM 703 (HANDLEBAR)-B007811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
7 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
8 |
WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/0/0/img/111100.jpg)
10 |
SPRING CONTROL DE STEP REAR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 >-246509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/1/3/img/117813_20251023145330.jpg)
11 |
CABLE/CONTROL/TRANSMISSION DE STEP REAR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 >-266596 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/1/img/66001.jpg)
12 |
BUTTON STEP REAR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1997 > 2016-252166 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/4/img/65824.jpg)
13 |
NUT CONTACTEUR STOP OEM PIAGGIO THREE-WHEELER APE TM 703, PORTER, CARGO 2020 <-196750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/6/img/65706.jpg)
14 |
WASHER SPRING (12. 8X20) OEM PIAGGIO COMMON A LA RANGE-118745 More informationQuantity required : 1 |
