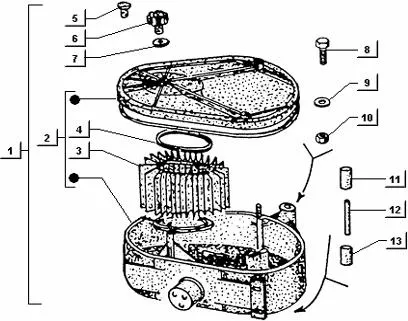

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
Moteur : T26 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T26_20251008092110.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/8/2/img/121582.jpg)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APE TM703 -263599 More informationQuantity required : 1 |
||||||
|
2 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APE TM703 -263599 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/9/img/115179.jpg)
3 |
AIR FILTER OEM PIAGGIO THREE-WHEELER APE FUEL CAR, TM703, P601, P501-438014 More informationQuantity required : 1 |
||||||
4 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/8/img/65678.jpg)
5 |
CAP OBTURATEUR (D6) OEM PIAGGIO COMMON A LA RANGE-090958 More informationQuantity required : 1 |
||||||
|
6 |
149323 BUTTON More informationQuantity required : 3 |
||||||
|
7 |
157227 GASKET More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
8 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 3 |
||||||
|
9 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
10 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 9 |
||||||
|
11 |
162314 SLEEVE More informationQuantity required : 2 |
||||||
|
12 |
162312 HOSE FITTING More informationQuantity required : 1 |
||||||
|
13 |
162314 SLEEVE More informationQuantity required : 2 |
