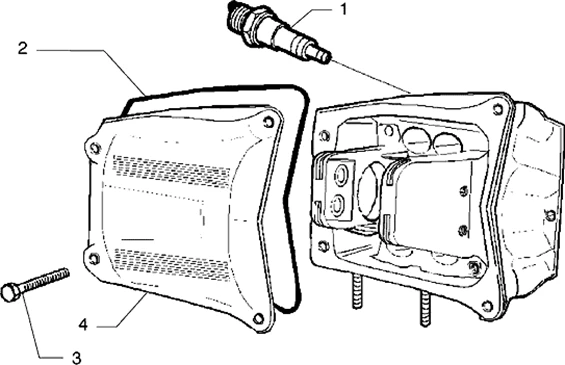

Moteur : T7 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T7.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
1 |
BOUGIE CHAMPION RG6YC ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -438073 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/9/img/68879.jpg)
1 |
BOUGIE CR7EKB ORIGINE PIAGGIO 500 MP3 GILERA NEXUS 2006> -829981 Plus d'informationsQuantité requise : 1 |
||||||
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/6/img/68726.jpg)
2 |
JOINT COUVERCLE DE CULASSE ORIGINE PIAGGIO 500 X9 2005< -828100 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
3 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
828065 - COUVERCLE CULASSE Plus d'informationsQuantité requise : 1 |
