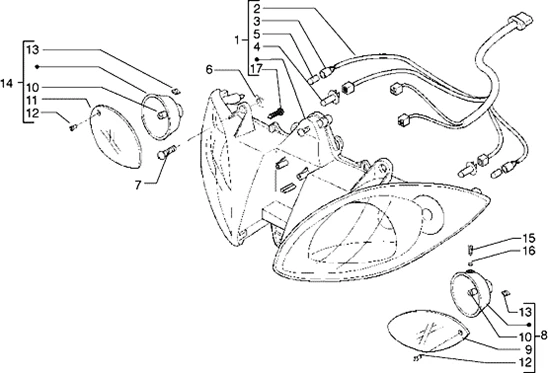

Connexions électriques : T41 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T41.PNG)
1 |
582785 - PROJECTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
583360 - GROUPE OPTIQUE X9 500 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
582792 - CABLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
3 |
PORTE AMPOULE ORIGINE PIAGGIO 125-300 GTS 2008>2016 -253327 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
4 |
AMPOULE/LAMPE 12V 55W H7 ORIGINE PIAGGIO COMMUN A LA GAMME -294353 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
5 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/5/3/0/img/79530.jpg)
8 |
CLIGNOTANTS AVANT ORIGINE PIAGGIO 125-250-500 X9 1998>2002 (PAIRE) -497473 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
CLIGNOTANTS AVANT ORIGINE PIAGGIO 125-250-500 X9 1998>2002 (PAIRE) -497473 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
10 |
AMPOULE/LAMPE 12V 10W BA15S/R10 ORIGINE PIAGGIO COMMUN A LA GAMME -181746 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
CLIGNOTANTS AVANT ORIGINE PIAGGIO 125-250-500 X9 1998>2002 (PAIRE) -497473 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
12 |
VIS PARKER (3.5X13) CRUCIFORME DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -008372 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
13 |
ECROU TOLE (3.5 PARKER) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM017403 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
CLIGNOTANTS AVANT ORIGINE PIAGGIO 125-250-500 X9 1998>2002 (PAIRE) -497473 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
15 |
VIS DE CARENAGE (3,5X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -297498 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
15 |
VIS PARKER CRUCIFORME (3,5X9,5) ORIGINE PIAGGIO COMMUN A LA GAMME -008432 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
16 |
RONDELLE PLATE (4.3X8X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -003054 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
17 |
VIS AUTOTARAUDEUSE (2,9X9,5) CRUCIFORME ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -015727 Plus d'informationsQuantité requise : 6 |
