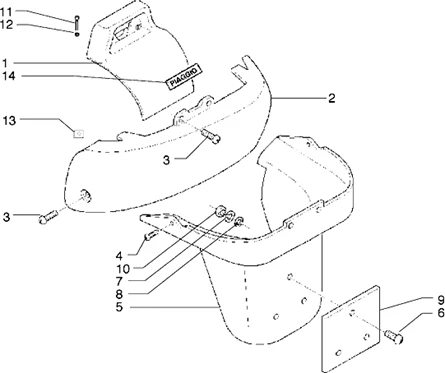

Châssis : T43 PROTECTIONS A.R.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T43.PNG)
1 |
SUPPORT FEU ARRIERE X9 JAUNE 384 |
||||||
|
1 |
6204320090 - COVERTURE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
62043200A7 - COVERTURE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
57557050D1 - SUPPORT FEU ARRIERE X9 BLEU 251 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
62043200N3 - COVERTURE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
62043200R8 - COVERTURE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
JOINTURE DES AILES ARRIERE ORIGINE PIAGGIO 125-250-500 X9 NOIR TEINTE MASSE -575568000P- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
ELEMENT ARRIERE X9 BLEU 251 |
||||||
|
2 |
JONCTION ARRIERE ORIGINE PIAGGIO 125-250-500 X9 GRIS -57556800E8 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
3 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
4 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
BAVETTE/GARDE-BOUE ARRIERE ORIGINE PIAGGIO 125-250 X9 -57609800E8 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
6 |
VIS CRUCIFORME (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -015996 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
7 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
8 |
RONDELLE (4,2X7,6X0,9) ORIGINE PIAGGIO COMMUN A LA GAMME -016404 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
9 |
PORTE PLAQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -584884 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
10 |
ECROU (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -020104 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
11 |
VIS CRUCIFORME (6X50) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -018640 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
12 |
RONDELLE PLATE (6,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -013950 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
577063 - MONOGRAMME AR PIAGGIO Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
SUPPORT PLAQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
16 |
VIS CRUCIFORME (3.5X9.5) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -121668 Plus d'informationsQuantité requise : 2 |
