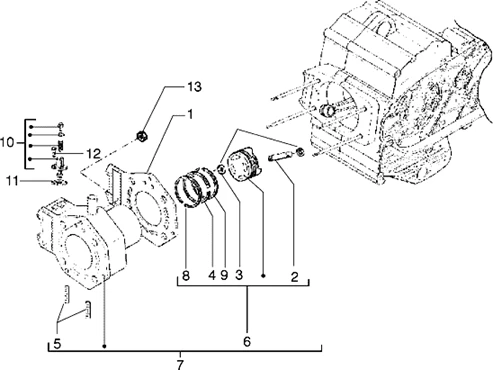

Moteur : T4 ENSEMBLE CYLINDRE-PISTON-AXE DE PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T4.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
1 |
JOINT EMBASE DE CYLINDRE (0,8MM) NE PAS UTILSER AVEC CARTER CM3236014A/B ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -830275 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/4/img/68904.jpg)
1 |
JOINT EMBASE DE CYLINDRE (0,6MM) NE PAS UTILSER AVEC CARTER CM3236014A/B ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 400-500 -830276 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
1 |
JOINT EMBASE DE CYLINDRE (0,4MM) NE PAS UTILSER AVEC CARTER CM3236014A/B ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 400-500 -830277 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.jpg)
2 |
AXE DE PISTON (D22) ORIGINE PIAGGIO 500-530 MP3 -827820 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
3 |
CIRCLIPS DE PISTON ORIGINE PIAGGIO 500 MP3 2007> -828116 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/7/img/68687.jpg)
4 |
SEGMENT INTERMEDIAIRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 500 CC 2008< -827706 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
5 |
GOUJON ECHAPPEMENT (6X30) ORIGINE PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE -239397 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/0/img/69020.jpg)
6 |
8328120002 - GR.PISTON* Plus d'informationsQuantité requise : 1 |
||||||
6 |
8328120003 - GR.PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
8328120004 - GR.PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
CYLINDRE PISTON ORIGINE PIAGGIO 500 X9, BEVERLY/GILERA 500 NEXUS/APRILIA 500 ATLANTIC -832811 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
SEGMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/7/img/69017.jpg)
8 |
SEGMENT DE FEU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 500 CC 2008< -832770 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/8/img/68688.jpg)
9 |
SEGMENT RACLEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 500 2008< -827707 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
10 |
TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 CC/MOTOS APRILIA -82650R Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 CC/MOTOS APRILIA -82650R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
11 |
JOINT DE TENDEUR CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -847928 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
12 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
13 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245 Plus d'informationsQuantité requise : 2 |
