Eclatés de véhicule - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

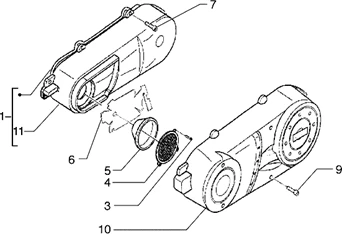

Moteur : T13 REFROIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T13.PNG)
1 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349 Plus d'informationsQuantité requise : 3 |
||||||
|
4 |
828987 - FILTRE A AIR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
828992 - PRISE D'AIR POUR REFROIDISSEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
828986 - REVETEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
829050 - VIS Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
9 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 5 |
||||||
|
10 |
CM119304 - COUVERCLE Plus d'informationsQuantité requise : 1 |
