Vehicle Exploded View - VESPA VESPA SPRINT 150 Vespa Sprint S 150 E5+ 2026 (EMEA) VESPA

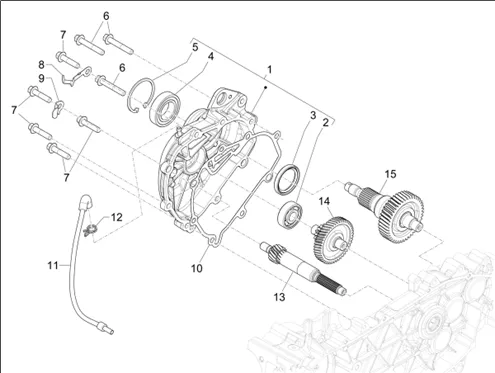

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
Ensemble réducteur
Search
B0160435 - COUVERCLE

1
P2R reference P2R reference 94676
Maker reference Maker reference B0160435

B0160435-COVER

More information

Quantity required : 1

BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R

2
P2R reference P2R reference 92847
Maker reference Maker reference 83026R

BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R

More information

Quantity required : 1

B015440 - BAGUE D'ETANCHEITE 38X50X7

3
P2R reference P2R reference 72675
Maker reference Maker reference B015440

B015440-BUSH D'ETANCHEITE 38X50X7

More information

Quantity required : 1

BEARING (30X55X13) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1A005376R

4
P2R reference P2R reference 139393
Maker reference Maker reference 1A005376R

BEARING (30X55X13) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1A005376R

More information

Quantity required : 1

CLIPS/CIRCLIPS SHAFT DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-829206

5
P2R reference P2R reference 68825
Maker reference Maker reference 829206

CLIPS/CIRCLIPS SHAFT DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-829206

More information

Quantity required : 1

SCREW FLANGE TH (8X50) OEM PIAGGIO COMMON A LA RANGE-B016773

6
P2R reference P2R reference 72719
Maker reference Maker reference B016773

SCREW FLANGE TH (8X50) OEM PIAGGIO COMMON A LA RANGE-B016773

More information

Quantity required : 3

1A000769 - VIS

7
P2R reference P2R reference 75325
Maker reference Maker reference 1A000769

1A000769-SCREW

More information

Quantity required : 5

1A029626 - PLATE

8
P2R reference P2R reference 227234
Maker reference Maker reference 1A029626

1A029626-PLATE

More information

Quantity required : 1

1A000482 - COLLIER

9
P2R reference P2R reference 75310
Maker reference Maker reference 1A000482

1A000482-CLAMP

More information

Quantity required : 1

GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456

10
P2R reference P2R reference 94697
Maker reference Maker reference B016456

GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456

More information

Quantity required : 1

B018670 - TUBE

11
P2R reference P2R reference 72788
Maker reference Maker reference B018670

B018670-TUBE

More information

Quantity required : 1

HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908

12
P2R reference P2R reference 72894
Maker reference Maker reference CM002908

HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908

More information

Quantity required : 1

1A005429 - ARBRE DE POULIE (Z=14)

13
P2R reference P2R reference 146237
Maker reference Maker reference 1A005429

1A005429-SHAFT DE PULLEY (Z: 14)

More information

Quantity required : 1

1A023118 - DRIVEN PULLEY SHAFT (Z=14)

13
P2R reference P2R reference 227235
Maker reference Maker reference 1A023118

1A023118-DRIVEN PULLEY SHAFT (Z = 14)

More information

Quantity required : 1

1A0068294 - COMPLETE LAYSHAFT

14
P2R reference P2R reference 209404
Maker reference Maker reference 1A0068294

1A0068294-COMPLETE LAYSHAFT

More information

Quantity required : 1

1A023114 - COMPLETE LAYSHAFT

14
P2R reference P2R reference 227236
Maker reference Maker reference 1A023114

1A023114-COMPLETE LAYSHAFT

More information

Quantity required : 1

B0172425 - AXE ROUE

15
P2R reference P2R reference 94743
Maker reference Maker reference 1A001090

1A001090-SPINDLE WHEEL

More information

Quantity required : 1

1A024626 - REAR WHEEL AXLE WITH I.P.

15
P2R reference P2R reference 227237
Maker reference Maker reference 1A024626

1A024626-REAR WHEEL AXLE WITH I. P.

More information

Quantity required : 1
