Vehicle Exploded View - VESPA VESPA SPRINT 150 Vespa Sprint S 150 E5+ 2026 (EMEA) VESPA

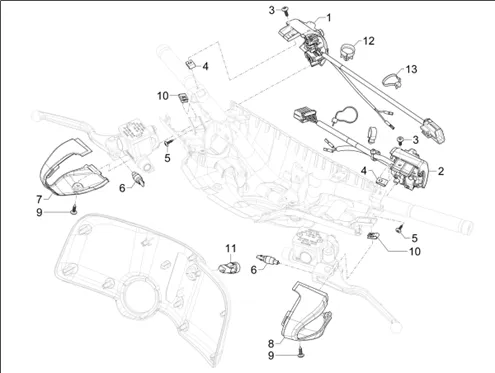

Circuit électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
Inverseurs - Commutateurs - Boutons - Interrupteurs
Search
1D004174000N22 - RIGHT HANDLEBAR SWITCHES

1
P2R reference P2R reference 227301
Maker reference Maker reference 1D004174000N22

1D004611000N22 - DISPOSITIF COMMANDE Ã-LECTRIQUE G.

More information

Quantity required : 1

1D004611000N22 - DISPOSITIF COMMANDE éLECTRIQUE G.

2
P2R reference P2R reference 209289
Maker reference Maker reference 1D004611000N22

1D004611000N22-DISPOSITIF CONTROL Ã - LECTRIQUE G.

More information

Quantity required : 1

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

3
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

4
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

5
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 2

CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032

6
P2R reference P2R reference 67958
Maker reference Maker reference 642032

CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032

More information

Quantity required : 2

1B010308000N22 - RIGHT SUPPORT BUTTONS

7
P2R reference P2R reference 209292
Maker reference Maker reference 1B010308000N22

1B010308000N22-RIGHT BRACKET BUTTONS

More information

Quantity required : 1

1B010309000N22 - LEFT SUPPORT BUTTONS

8
P2R reference P2R reference 209290
Maker reference Maker reference 1B010309000N22

1B010309000N22-LEFT BRACKET BUTTONS

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

9
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 2

1D005558 - SADDLE OPENING PUSH BUTTON

11
P2R reference P2R reference 227302
Maker reference Maker reference 1D005558

1D005558-SADDLE OPENING PUSH BUTTON

More information

Quantity required : 1

CLIPS SPRING (D22) OEM PIAGGIO COMMON A LA RANGE-641652

12
P2R reference P2R reference 67938
Maker reference Maker reference 641652

CLIPS SPRING (D22) OEM PIAGGIO COMMON A LA RANGE-641652

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

13
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 2
