Vehicle Exploded View - VESPA VESPA SPRINT 150 Vespa Sprint S 150 E5+ 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

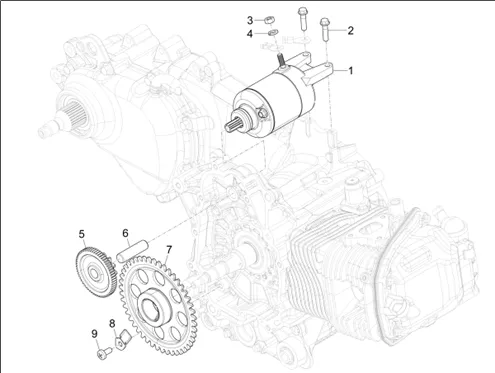

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1354/Vespa_Sprint_S_150_E5_2026_EMEA_01.20.png)
1 |
1A029319-STARTING MOTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
3 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
|
5 |
1A028933-ELECTRIC STARTER INTERMEDIATE More informationQuantity required : 1 |
||||||
|
6 |
1A028117-STARTING GEAR AXIS More informationQuantity required : 1 |
||||||
|
7 |
1A006073-CORONA DE DÉPART More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/2/2/8/img/93228.jpg)
8 |
PLATE DE MAINTIEN OEM PIAGGIO 125 COMMON A LA RANGE-876646 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
9 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 1 |
