Vehicle Exploded View - VESPA VESPA SPRINT 150 Vespa Sprint S 150 E5+ 2026 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE

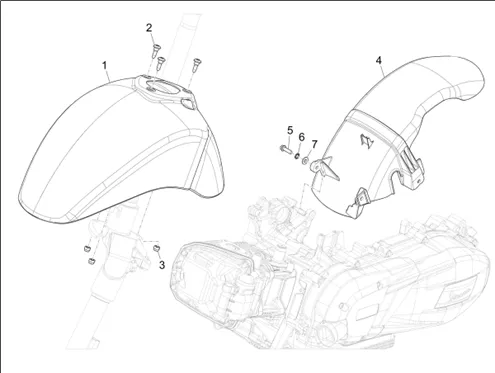

Logement roue - Garde boue
Search
1B006646000A19 - FRONT MUDGUARD

1
P2R reference P2R reference 209246
Maker reference Maker reference 1B006646000A19

1B006646000A19-FRONT MUDGUARD

More information

Quantity required : 1

1B006646000B04 - FRONT MUDGUARD

1
P2R reference P2R reference 209247
Maker reference Maker reference 1B006646000B04

1B006646000B04-FRONT MUDGUARD

More information

Quantity required : 1

FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA SPRINT 2014 > BLACK 99/C-1B006646000NV

1
P2R reference P2R reference 160648
Maker reference Maker reference 1B006646000NV

FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA SPRINT 2014 > BLACK 99/C-1B006646000NV

More information

Quantity required : 1

GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > RED 894-1B006646000R7

1
P2R reference P2R reference 178139
Maker reference Maker reference 1B006646000R7

GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > RED 894-1B006646000R7

More information

Quantity required : 1

1B006646000V28 - FRONT MUDGUARD

1
P2R reference P2R reference 227267
Maker reference Maker reference 1B006646000V28

1B006646 - GARDE-BOUE AV.

More information

Quantity required : 1

GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > UNPAINTED-1B006646

1
P2R reference P2R reference 178140
Maker reference Maker reference 1B006646

GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > UNPAINTED-1B006646

More information

Quantity required : 1

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

2
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

More information

Quantity required : 3

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

3
P2R reference P2R reference 111436
Maker reference Maker reference 0121385

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

More information

Quantity required : 3

1B011517 - RR MUDGARD ASS.Y

4
P2R reference P2R reference 209414
Maker reference Maker reference 1B011517

1B011517-RR MUDGARD ASS. Y

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

5
P2R reference P2R reference 65447
Maker reference Maker reference 0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

More information

Quantity required : 1

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

6
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 1

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

7
P2R reference P2R reference 63803
Maker reference Maker reference 0061255

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

More information

Quantity required : 1
