Vehicle Exploded View - VESPA VESPA SPRINT 150 Vespa Sprint S 150 E5+ 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

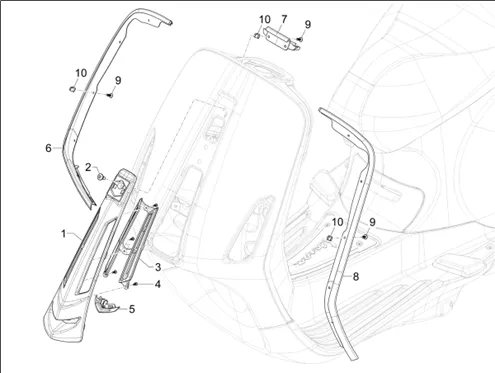

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1354/Vespa_Sprint_S_150_E5_2026_EMEA_02.26.png)
1 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
2 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 1 |
||||||
|
3 |
SCREW - -008432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
4 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 4 |
||||||
|
5 |
1B010664000N22 - BORD DE TABLIER D More informationQuantity required : 1 |
||||||
|
6 |
1B010664000N22-EDGE DE LEG SHIELD D More informationQuantity required : 1 |
||||||
|
7 |
1B010662000N22-EDGE DE LEG SHIELD CENTRAL More informationQuantity required : 1 |
||||||
|
8 |
1B010663000N22-EDGE DE LEG SHIELD G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
9 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
10 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 14 |
