Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

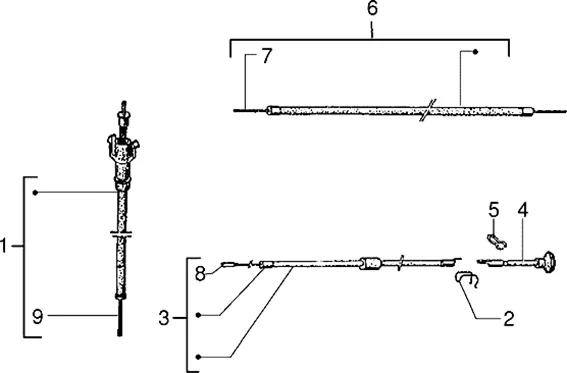

Transmisisons : T51 TRANSMISSIONS FREIN AR.-COMPTEUR KILOM.-STARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/725/Vespa_PX_200_E_1998-2005_T51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/8/6/img/90386.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 125 VESPA PX 1998 >-668463 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/0/img/69060.jpg)
1 |
LEVER DE CONTROL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-833428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/4/img/65804.jpg)
2 |
SPRING TIRETTE STARTER OEM PIAGGIO 125 PX VESPA-183321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/0/7/img/90207.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE STARTER OEM PIAGGIO 125 VESPA PX 1998 >-667208 More informationQuantity required : 1 |
||||||
4 |
TIRANT DE STARTER OEM PIAGGIO VESPA 125 PX/THREE-WHEELER APE 50 2T 1980 > 1985-580938 More informationQuantity required : 1 |
||||||
|
5 |
050207 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/6/8/img/75168.jpg)
6 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 125 VESPA PX 1998 >-191804 More informationQuantity required : 1 |
||||||
|
7 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 125 VESPA PX 1998 >-191804 More informationQuantity required : 1 |
||||||
|
8 |
CABLE STARTER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/6/0/img/79960.jpg)
9 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER (WITHOUT GAINE) OEM PIAGGIO 125 PX 1998 > 2005-563797 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
