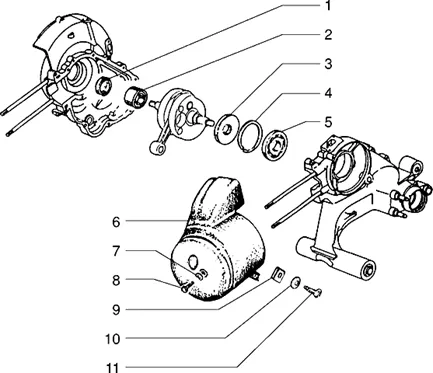

Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005 VESPA

Moteur : T4 OIFFE-ROULEMENT DE VILEBREQUIN
Oiffe-roulement de vilebrequin
Search
OIL SEAL (24X35X6) EMBIELLAGE/VILLEBREQUIN OEM PIAGGIO 125 VESPA PX 1998 >-431121

1
P2R reference P2R reference 78552
Maker reference Maker reference 431121

OIL SEAL (24X35X6) EMBIELLAGE/VILLEBREQUIN OEM PIAGGIO 125 VESPA PX 1998 >-431121

More information

Quantity required : 1

BEARING (25X37X15) DE VILLEBREQUIN OEM PIAGGIO 125 VESPA PX-133068

2
P2R reference P2R reference 74679
Maker reference Maker reference 133068

BEARING (25X37X15) DE VILLEBREQUIN OEM PIAGGIO 125 VESPA PX-133068

More information

Quantity required : 1

OIL SEAL (31X62. 1X5. 8/4. 3) VILEBREQUIN COTE IGNITION OEM PIAGGIO 125 VESPA PX 1998 >-B015668

3
P2R reference P2R reference 94656
Maker reference Maker reference B015668

OIL SEAL (31X62. 1X5. 8/4. 3) VILEBREQUIN COTE IGNITION OEM PIAGGIO 125 VESPA PX 1998 >-B015668

More information

Quantity required : 1

CLIPS/CIRCLIPS (66X2) OEM PIAGGIO COMMON A LA RANGE-006662

4
P2R reference P2R reference 63827
Maker reference Maker reference 0066625

CLIPS/CIRCLIPS (66X2) OEM PIAGGIO COMMON A LA RANGE-006662

More information

Quantity required : 1

BEARING (25X62X12) DE VILEBREQUIN OEM PIAGGIO 125 VESPA PX 1998 >-097804

5
P2R reference P2R reference 74412
Maker reference Maker reference 0978045

BEARING (25X62X12) DE VILEBREQUIN OEM PIAGGIO 125 VESPA PX 1998 >-097804

More information

Quantity required : 1

431054 - COIFFE

6
P2R reference P2R reference 78550
Maker reference Maker reference 431054

431054 - COIFFE

More information

Quantity required : 1

COIFFE

6
P2R reference P2R reference
Maker reference Maker reference 431058

COIFFE

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

7
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 1

8
P2R reference P2R reference
Maker reference Maker reference 0302835

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

9
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

More information

Quantity required : 1

WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733

10
P2R reference P2R reference 65682
Maker reference Maker reference 0977335

WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733

More information

Quantity required : 1

SCREW PARKER (5X15) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015737

11
P2R reference P2R reference 65391
Maker reference Maker reference 0157375

SCREW PARKER (5X15) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015737

More information

Quantity required : 1
