Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

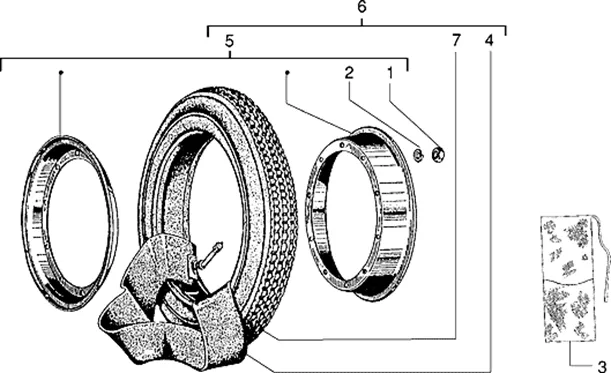

Suspensions-roues : T52 ROUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/725/Vespa_PX_200_E_1998-2005_T52.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
1 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
2 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/8/9/img/67789.jpg)
3 |
TROUSSE A OUTILS OEM PIAGGIO 50 LIBERTY, NRG, VESPA LX, 125 PX/GILERA 50 RUNNER-635091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/2/9/img/68129.jpg)
4 |
INNER TUBE (300/350-10) OEM PIAGGIO 125 VESPA PX 1998 >/THREE-WHEELER APE 1980 > 1985-650028M More informationQuantity required : 1 |
||||||
4 |
TIRANT DE STARTER OEM PIAGGIO VESPA 125 PX/THREE-WHEELER APE 50 2T 1980 > 1985-580938 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/6/2/img/74262.jpg)
5 |
RIM/FRONT WHEEL OU REAR OEM PIAGGIO 125 VESPA PX 1998 >-0846315 More informationQuantity required : 2 |
||||||
|
6 |
597452 - ROUE DE SECOURS More informationQuantity required : 2 |
||||||
|
7 |
TYRE 3, 50X10 S83 REINF TT/TL 59J OEM PIAGGIO 125 VESPA PX, APE-1R000083 More informationQuantity required : 2 |
||||||
|
7 |
TYRE 3, 50X10 S83 REINF TT/TL 59J OEM PIAGGIO 125 VESPA PX, APE-1R000083 More informationQuantity required : 2 |
