Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

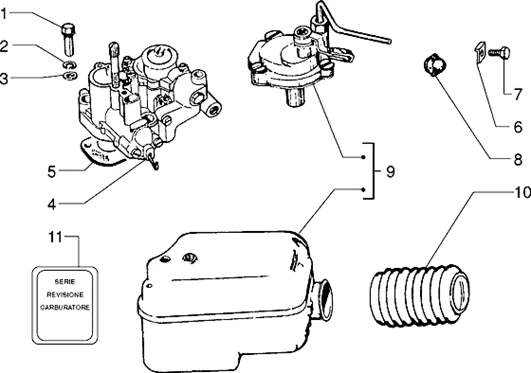

Moteur : T18 CARBURATEUR-FILTRE A AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/725/Vespa_PX_200_E_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/0/6/img/76806.jpg)
1 |
SCREW OF CARBURETTOR OEM PIAGGIO 125 PX VESPA-2392656 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/2/8/img/73828.jpg)
2 |
016409 - RONDELLE S01640900 More informationQuantity required : 2 |
||||||
3 |
013762 - RONDELLE S01376200 More informationQuantity required : 2 |
||||||
|
4 |
|
||||||
|
4 |
285328-CARBURETTOR VESPA 200 PX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/2/9/img/94529.jpg)
5 |
GASKET OF SEMELLE OF CARBURETTOR OEM PIAGGIO VESPA 125 PX 1998 >-B013740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/4/img/65744.jpg)
6 |
PLATE OF PUMP A OIL OEM PIAGGIO 125 PX VESPA-146087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/3/img/65743.jpg)
7 |
SCREW SPECIALE OF PUMP A OIL OEM PIAGGIO 125 PX VESPA-146086 More informationQuantity required : 1 |
||||||
|
8 |
CAPUCHON |
||||||
|
9 |
FILTRE A AIR CPLT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/1/6/img/76616.jpg)
10 |
SLEEVE DE AIR FILTER OEM PIAGGIO 125 VESPA PX 1998 >-227205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/7/3/img/74873.jpg)
11 |
POCHETTE/KIT JOINTS COMPLETE OF CARBURETTOR OEM PIAGGIO 125 VESPA PX 1998 >-154792 More informationQuantity required : 1 |
