Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

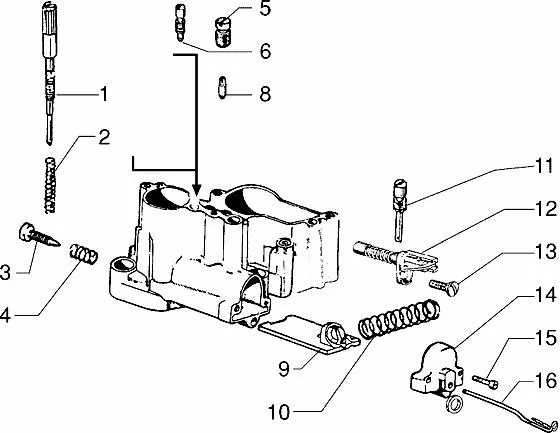

Moteur : T21 PIECES COMPOSANT LE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/725/Vespa_PX_200_E_1998-2005_T21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/7/7/img/74277.jpg)
1 |
SCREW OF BOISSEAU DE THROTTLE OEM PIAGGIO 125 PX VESPA-085299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/2/2/img/74022.jpg)
2 |
SPRING SCREW OF RALENTI OEM PIAGGIO 125 VESPA PX-026018 More informationQuantity required : 1 |
||||||
3 |
239089-SCREW More informationQuantity required : 1 |
||||||
|
3 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
4 |
SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285 More informationQuantity required : 1 |
||||||
|
5 |
193870-CALIBREUR D, AIR More informationQuantity required : 1 |
||||||
|
6 |
191362 - GICLEUR 55/100 More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
8 |
GICLEUR 116/100 |
||||||
|
9 |
183140-VALVE More informationQuantity required : 1 |
||||||
|
10 |
093994-SPRING More informationQuantity required : 1 |
||||||
|
11 |
092712-GICLEUR More informationQuantity required : 1 |
||||||
|
12 |
241089-VALVE More informationQuantity required : 1 |
||||||
|
13 |
VIS |
||||||
|
14 |
COUVERCLE GAZ |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/4/4/img/108544.jpg)
15 |
SCREW TH (10X70) OEM PIAGGIO COMMON A LA RANGE-018572 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/3/3/img/74533.jpg)
16 |
ROD OF BOISSEAU DE THROTTLE OEM PIAGGIO 125 PX VESPA-113010 More informationQuantity required : 1 |
