Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 TECH E5 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

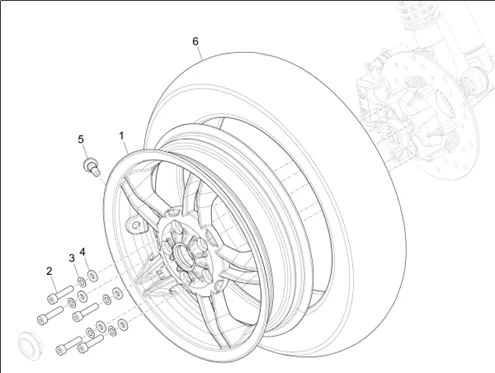

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1226/Vespa_Primavera_50_TECH_E5_2024_(EMEA)_04.11.png)
1 |
1C007458000N13-FRONT WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
2 |
SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
4 |
WASHER PLATE (8, 2X17X2, 5) OEM PIAGGIO COMMON A LA RANGE-828961 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
5 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
6 |
1C006466-TYRE AV More informationQuantity required : 1 |
||||||
|
6 |
1C003736-TYRE 110/70-12 " More informationQuantity required : 1 |
||||||
|
6 |
1C002662-TYRE 110/70-12 " More informationQuantity required : 1 |
