Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 TECH E5 2024 (EMEA) VESPA

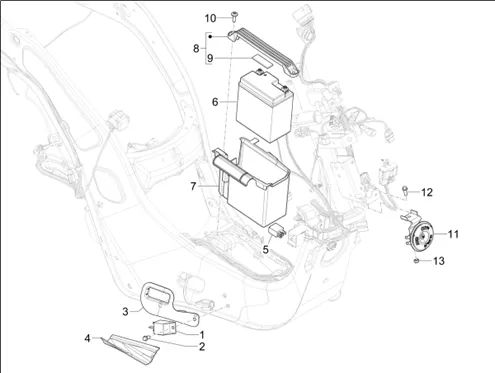

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
Relais - Batterie - Avertisseur sonore
Search
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

1
P2R reference P2R reference 67203
Maker reference Maker reference 58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

2
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

680140 - ENTRETOISE

3
P2R reference P2R reference 92152
Maker reference Maker reference 680140

680140-SPACER

More information

Quantity required : 1

raw material

4
P2R reference P2R reference
Maker reference Maker reference CM017712

raw material

RELAIS 12V 30A WITH RESISTANCE OEM PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD-1D001636

5
P2R reference P2R reference 139406
Maker reference Maker reference 1D001636

RELAIS 12V 30A WITH RESISTANCE OEM PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD-1D001636

More information

Quantity required : 1

BATTERY 12V 6AH PTX7L-BS OEM PIAGGIO COMMON A LA RANGE (LG113XL70XH132)-1R000317

6
P2R reference P2R reference 136948
Maker reference Maker reference 1R000317

BATTERY 12V 6AH PTX7L-BS OEM PIAGGIO COMMON A LA RANGE (LG113XL70XH132)-1R000317

More information

Quantity required : 1

1B004967 - SUPPORT DE BATTERIE

7
P2R reference P2R reference 149260
Maker reference Maker reference 1B004967

1B004967-BRACKET DE BATTERY

More information

Quantity required : 1

1B0009865 - SUPPORT

8
P2R reference P2R reference 139737
Maker reference Maker reference 1B0009865

1B0009865-BRACKET

More information

Quantity required : 1

CM017711 - JOINT

9
P2R reference P2R reference 95196
Maker reference Maker reference CM017711

CM017711-GASKET

More information

Quantity required : 1

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

10
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

More information

Quantity required : 2

AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R

11
P2R reference P2R reference 67172
Maker reference Maker reference 58034R

AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

12
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

709116 - ECROU

13
P2R reference P2R reference 68494
Maker reference Maker reference 709116

709116-NUT

More information

Quantity required : 1
