Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 TECH E5 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

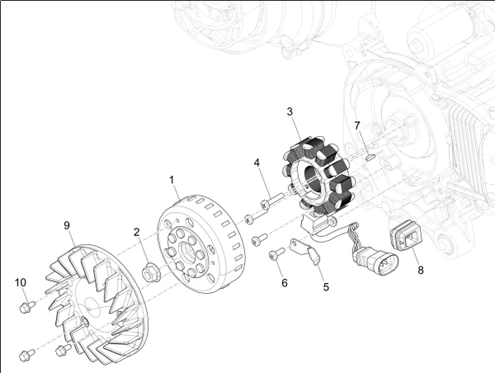

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1226/Vespa_Primavera_50_TECH_E5_2024_(EMEA)_01.21.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/6/img/127236.jpg)
1 |
ROTOR IGNITION OEM PIAGGIO 50 LIBERTY 4T 2015 >, ZIP 4T 2018 >, PRIMAVERA 4T 2018 >, SPRINT 2020 >-1A003819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
2 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/8/img/174698.jpg)
3 |
STATOR IGNITION OEM PIAGGIO 50 LIBERTY 4T 2015 >, ZIP 4T 2018 >, PRIMAVERA 4T 2018 >, SPRINT 2020 >-1A018439 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
4 |
SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597 More informationQuantity required : 2 |
||||||
5 |
1A007030-SHEET METAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/4/img/70514.jpg)
6 |
SCREW CRUCIFORME (5X14) OEM PIAGGIO COMMON A LA RANGE-873979 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
7 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
|
8 |
834018 - ANNEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/0/6/2/6/img/160626.jpg)
9 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA-S 4T, VESPA SPRINT 4T/APRILIA 50 SR MOTARD 4T, SCARABEO 4T-1A011563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
10 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 3 |
