Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 TECH E5 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

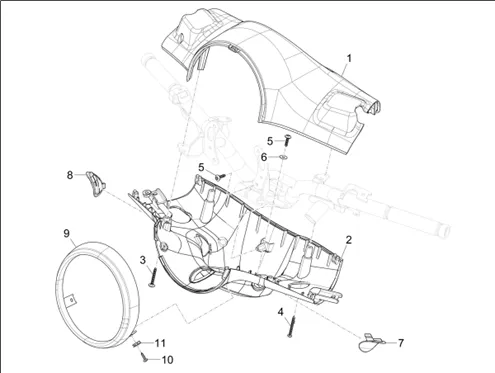

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1226/Vespa_Primavera_50_TECH_E5_2024_(EMEA)_03.01.png)
1 |
HANDLEBAR COVER UPPER OEM PIAGGIO 50-125 VESPA PRIMAVERA TECH E5 + 2024 GREY G41-1B010304000G41 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/2/3/8/img/212238.JPG)
1 |
HANDLEBAR COVER UPPER OEM PIAGGIO 125 VESPA PRIMAVERA TECH E5 + 2024 BLUE 288/A-1B012160000DY More informationQuantity required : 1 |
||||||
|
2 |
HANDLEBAR COVER LOWER OEM PIAGGIO 50-125 VESPA PRIMAVERA TECH E5 + GREY G41 2024-1B010302000G41 More informationQuantity required : 1 |
||||||
|
2 |
HANDLEBAR COVER LOWER OEM PIAGGIO 50-125 VESPA PRIMAVERA TECH E5 + BLUE 288/A 2024-1B010302000DY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
3 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
SCREW AUTOTARAUDEUSE (4X35) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-265636 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
5 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
6 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 2 |
||||||
|
7 |
CAP/OBTURATEUR LEFT DU HANDLEBAR COVER LOWER OEM VESPA PRIMAVERA TECH E5 + 2024 GREY G41-1B010456000G41 More informationQuantity required : 1 |
||||||
|
7 |
CAP/OBTURATEUR LEFT DU HANDLEBAR COVER LOWER OEM VESPA PRIMAVERA TECH E5 + 2024 BLUE 288/A-1B010456000DY More informationQuantity required : 1 |
||||||
|
8 |
CAP/OBTURATEUR RIGHT HANDLEBAR COVER LOWER OEM VESPA PRIMAVERA TECH E5 + 2024 GREY G41-1B010457000G41 More informationQuantity required : 1 |
||||||
|
8 |
CAP/OBTURATEUR RIGHT HANDLEBAR COVER LOWER OEM VESPA PRIMAVERA TECH E5 + 2024 BLUE 288/A-1B010457000DY More informationQuantity required : 1 |
||||||
|
9 |
SURROUND/ENJOLIVEUR DE HEADLAMP OEM PIAGGIO 50-125 VESPA PRIMAVERA TECH E5 + 2024-1B010306000G24 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
10 |
SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
11 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 2 |
