Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 TECH E5 2024 (EMEA) VESPA

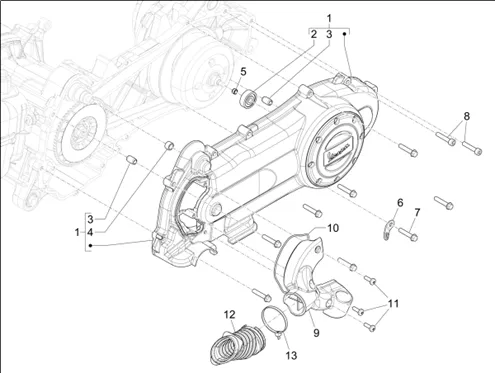

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
1A023422 - TRANSMISSION COVER WITH I.P.

1
P2R reference P2R reference 209059
Maker reference Maker reference 1A023422

1A023422-TRANSMISSION COVER WITH I. P.

More information

Quantity required : 1

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

2
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

3
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

4
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BUSH OF COMPENSATION ON SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-478197

5
P2R reference P2R reference 66548
Maker reference Maker reference 478197

BUSH OF COMPENSATION ON SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-478197

More information

Quantity required : 1

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

6
P2R reference P2R reference 69338
Maker reference Maker reference 844964

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

7
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 8

SCREW TC (6X30) OEM PIAGGIO COMMON A LA RANGE-1A011419

8
P2R reference P2R reference 151588
Maker reference Maker reference 1A011419

SCREW TC (6X30) OEM PIAGGIO COMMON A LA RANGE-1A011419

More information

Quantity required : 2

B018971 - COUVERCLE DE REFROIDISSEMENT

9
P2R reference P2R reference 94848
Maker reference Maker reference B018971

B018971-COVER DE COOLING

More information

Quantity required : 1

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

10
P2R reference P2R reference 66470
Maker reference Maker reference 435251

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

More information

Quantity required : 1

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

11
P2R reference P2R reference 66471
Maker reference Maker reference 435295

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

More information

Quantity required : 3

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2014 >-1B001009

12
P2R reference P2R reference 75785
Maker reference Maker reference 1B001009

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2014 >-1B001009

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

13
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 1
