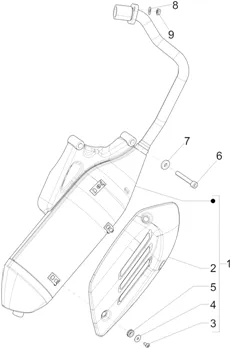

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-4V 2013-2015 VESPA

Moteur : 01.42 SILENCIEUX
Silencieux
Search
EXHAUST "PIAGGIO GENUINE PART" 50 VESPA PRIMAVERA 4stroke , SPRINT 4stroke -1A0026135-

1
P2R reference P2R reference 109081
Maker reference Maker reference 1A0026135

SILENCER EXHAUST OEM PIAGGIO 50 VESPA PRIMAVERA 4T, SPRINT 4T-1A0026135

More information

Quantity required : 1

PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-B018955

2
P2R reference P2R reference 94847
Maker reference Maker reference B018955

PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-B018955

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

3
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 3

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

3
P2R reference P2R reference 71934
Maker reference Maker reference 1C001493

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 3

WASHER PLATE (D5) OEM PIAGGIO COMMON A LA RANGE-844927

4
P2R reference P2R reference 93011
Maker reference Maker reference 844927

WASHER PLATE (D5) OEM PIAGGIO COMMON A LA RANGE-844927

More information

Quantity required : 3

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782

5
P2R reference P2R reference 69204
Maker reference Maker reference 841782

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782

More information

Quantity required : 3

SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591

6
P2R reference P2R reference 69355
Maker reference Maker reference 845591

SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591

More information

Quantity required : 2

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

7
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 2

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

8
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 2

NUT D'ECHAPPEMENT COTE CYLINDER OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-833494

9
P2R reference P2R reference 69067
Maker reference Maker reference 833494

NUT D'ECHAPPEMENT COTE CYLINDER OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-833494

More information

Quantity required : 2
