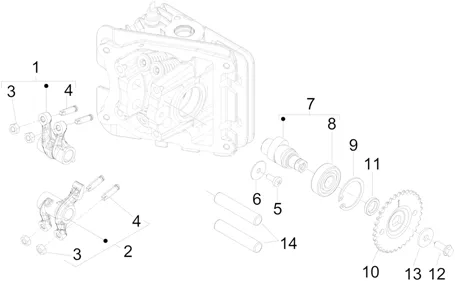

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-4V 2013-2015 VESPA

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
Groupe support balanciers
Search
B015374 - BALANCIER ASPIR.

1
P2R reference P2R reference 94636
Maker reference Maker reference B015374

B015374-BALANCIER ASPIR.

More information

Quantity required : 1

B015611 - BALANCIER

2
P2R reference P2R reference 94653
Maker reference Maker reference B015611

B015611-BALANCIER

More information

Quantity required : 1

880519 - ECROU

3
P2R reference P2R reference 93391
Maker reference Maker reference 880519

880519-NUT

More information

Quantity required : 2

B015630 - VIS REGL. VOLET

4
P2R reference P2R reference 94655
Maker reference Maker reference B015630

B015630-SCREW REGL. VOLET

More information

Quantity required : 2

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

5
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

More information

Quantity required : 2

WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021

6
P2R reference P2R reference 63788
Maker reference Maker reference 0040215

WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021

More information

Quantity required : 1

CAMSHAFT OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T 4 SOUPAPES, FLY, TYPHOON, VESPA LX, PRIMAVERA, VESPA-S, SPRINT/APRILIA SR MOTARD, SPORT-CITY-845426

7
P2R reference P2R reference 69350
Maker reference Maker reference 845426

CAMSHAFT OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T 4 SOUPAPES, FLY, TYPHOON, VESPA LX, PRIMAVERA, VESPA-S, SPRINT/APRILIA SR MOTARD, SPORT-CITY-845426

More information

Quantity required : 1

BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-96926R

8
P2R reference P2R reference 70955
Maker reference Maker reference 96926R

BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-96926R

More information

Quantity required : 1

CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006632

9
P2R reference P2R reference 63822
Maker reference Maker reference 0066325

CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006632

More information

Quantity required : 1

COURONNE TIMING COTE CAMSHAFT OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-434943

10
P2R reference P2R reference 66464
Maker reference Maker reference 434943

COURONNE TIMING COTE CAMSHAFT OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-434943

More information

Quantity required : 1

SPACER DE GROUP BALANCIER OEM PIAGGIO 50 COMMON A LA RANGE-842166

11
P2R reference P2R reference 69216
Maker reference Maker reference 842166

SPACER DE GROUP BALANCIER OEM PIAGGIO 50 COMMON A LA RANGE-842166

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

12
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

12
P2R reference P2R reference 72723
Maker reference Maker reference 434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695

13
P2R reference P2R reference 66501
Maker reference Maker reference 436695

WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695

More information

Quantity required : 1

SHAFT OF CULBUTEURS OEM PIAGGIO APRILIA 50 SR MOTARD 4T 2013 >/PIAGGIO 50 FLY 4T 2011 > 2013, 50 TYPHOON 4T 2012 >/VESPA LX 50 4T 2009 > 2013-842174

14
P2R reference P2R reference 69217
Maker reference Maker reference 842174

SHAFT OF CULBUTEURS OEM PIAGGIO APRILIA 50 SR MOTARD 4T 2013 >/PIAGGIO 50 FLY 4T 2011 > 2013, 50 TYPHOON 4T 2012 >/VESPA LX 50 4T 2009 > 2013-842174

More information

Quantity required : 2
