Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-4V 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

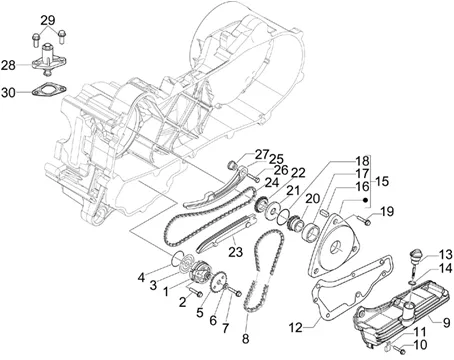

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/222/Vespa_Primavera_50_4T-4V_2013-2015_01.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/9/img/70649.jpg)
1 |
OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-877262 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/8/img/66438.jpg)
2 |
SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/4/img/66504.jpg)
3 |
GASKET OF CASING OIL PUMP OEM PIAGGIO 50 4T ZIP, LIBERTY, FLY, PRIMAVERA, SPRINT-436751 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/5/img/66465.jpg)
4 |
O-RING (12, 42X1) OEM PIAGGIO COMMON A LA RANGE-434947 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
5 |
SPROCKET OIL PUMP OEM PIAGGIO 50-125-300 COMMON A LA RANGE-287913 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
6 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
7 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/4/img/66454.jpg)
8 |
CHAIN DE CONTROL OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-434447 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/1/img/69331.jpg)
9 |
CASING OIL LATERAL OEM PIAGGIO 50 FLY 4T 2005 >, VESPA LX 4T 2006 >, PRIMAVERA-SPRINT 4T 2013 >/APRILIA 50 SR MOTARD 4T 2013 >-844871 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
10 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
|||||||||
|
10 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
|||||||||
11 |
487824 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/2/img/70932.jpg)
12 |
GASKET OF CASING OIL LATERAL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969132 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/5/img/69325.jpg)
13 |
CAP OIL SCOOT OEM PIAGGIO 50 ZIP 2000 4T, FLY 2006 > 4T, LIBERTY 2006 > 4T, VESPA LX 2006 > 4T, PRIMAVERA 2013 > 4T, SPRINT 2014 > 4T/APRILIA 50 SCARABEO 2002 > 4T, SPORT-CITY 2008 > 4T-844721 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
14 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
|||||||||
|
14 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/5/img/66555.jpg)
15 |
COVER TIMING (LIVRE WITH GASKET) OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA PRIMAVERA 4T, VESPA LX 4T-478324 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/7/img/66447.JPG)
16 |
BUFFER DE CHAIN OF PUMP A OIL PIAGGIO COMMON A LA RANGE-434345 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
17 |
OIL SEAL (22X32X7) VILEBREQUIN COTE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-2879633 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/2/img/69332.jpg)
18 |
GASKET OF SPROCKET ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, VESPA-S 4T-844888 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
19 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/8/img/69068.jpg)
20 |
SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-833495 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/0/img/66380.jpg)
21 |
WASHER AJUSTEMENT OEM PIAGGIO COMMON A LA RANGE-430535 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/7/img/174697.jpg)
22 |
SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476 More informationQuantity required : 1 |
|||||||||
|
22 |
SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/5/img/70995.jpg)
23 |
PATIN DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-969877 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/7/img/70967.jpg)
24 |
CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-96933R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/4/img/68764.jpg)
25 |
GLISSIERE TENDEUR DE CHAIN OEM PIAGGIO 50-100 COMMON A LA RANGE-828561 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
26 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 1 |
|||||||||
|
27 |
478247 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/1/6/img/178616.jpg)
28 |
TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE-1A019253 More informationQuantity required : 1 |
|||||||||
|
28 |
TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE-1A019253 More informationQuantity required : 1 |
|||||||||
|
29 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
30 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
|||||||||
