Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-4V 2013-2015 VESPA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER

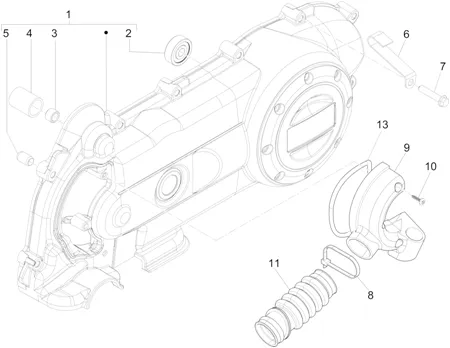

Couvercle carter - Refoidissement carter
Search
COVER DE TRANSMISSION OEM PIAGGIO 50 4T FLY, PRIMAVERA, SPRINT 2012 > 2017-873003

1
P2R reference P2R reference 93153
Maker reference Maker reference 873003

COVER DE TRANSMISSION OEM PIAGGIO 50 4T FLY, PRIMAVERA, SPRINT 2012 > 2017-873003

More information

Quantity required : 1

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

2
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

3
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

4
P2R reference P2R reference 66167
Maker reference Maker reference 286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

5
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656

6
P2R reference P2R reference 66610
Maker reference Maker reference 482291

CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

7
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 7

HOSE CLAMP NYLON TYPE RILSAN 3. 00X200MM OEM PIAGGIO COMMON A LA RANGE-709519

8
P2R reference P2R reference 68495
Maker reference Maker reference 709519

HOSE CLAMP NYLON TYPE RILSAN 3. 00X200MM OEM PIAGGIO COMMON A LA RANGE-709519

More information

Quantity required : 1

B018971 - COUVERCLE DE REFROIDISSEMENT

9
P2R reference P2R reference 94848
Maker reference Maker reference B018971

B018971-COVER DE COOLING

More information

Quantity required : 1

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

10
P2R reference P2R reference 66471
Maker reference Maker reference 435295

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

More information

Quantity required : 3

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2014 >-1B001009

11
P2R reference P2R reference 75785
Maker reference Maker reference 1B001009

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2014 >-1B001009

More information

Quantity required : 1

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

13
P2R reference P2R reference 66470
Maker reference Maker reference 435251

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

More information

Quantity required : 1
