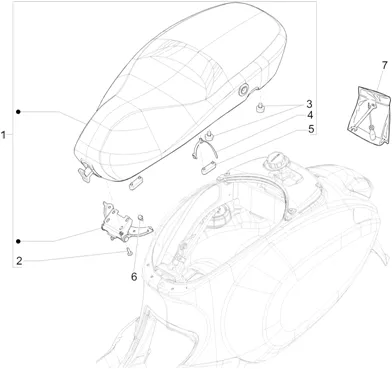

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-4V 2013-2015 VESPA

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
Selle/sieges
Search
SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > BEIGE-1B000345000C2

1
P2R reference P2R reference 75560
Maker reference Maker reference 1B000345000C2

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > BEIGE-1B000345000C2

More information

Quantity required : 1

1B000345000C3 - SELLE

1
P2R reference P2R reference 75561
Maker reference Maker reference 1B000345000C3

1B000345000C3-SEAT *

More information

Quantity required : 1

SEAT OEM PIAGGIO 50 VESPA PRIMAVERA TOURING-1B002192

1
P2R reference P2R reference 127454
Maker reference Maker reference 1B002192

SEAT OEM PIAGGIO 50 VESPA PRIMAVERA TOURING-1B002192

More information

Quantity required : 1

67363300C1 - SELLE

1
P2R reference P2R reference 91362
Maker reference Maker reference 67363300C1

67363300C1-SEAT *

More information

Quantity required : 1

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > RED-1B000345000C1

1
P2R reference P2R reference 75559
Maker reference Maker reference 1B000345000C1

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > RED-1B000345000C1

More information

Quantity required : 1

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

2
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

More information

Quantity required : 4

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

3
P2R reference P2R reference 67157
Maker reference Maker reference 577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

More information

Quantity required : 2

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

4
P2R reference P2R reference 66307
Maker reference Maker reference 298729

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

More information

Quantity required : 1

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

5
P2R reference P2R reference 66292
Maker reference Maker reference 296456

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

More information

Quantity required : 2

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

6
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 4

1C000594 - TROUSSE OUTILS

7
P2R reference P2R reference 76023
Maker reference Maker reference 1C000594

1C000594-TROUSSE OUTILS

More information

Quantity required : 1
