Vehicle Exploded View - VESPA VESPA LX 125 4T 3V IE 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

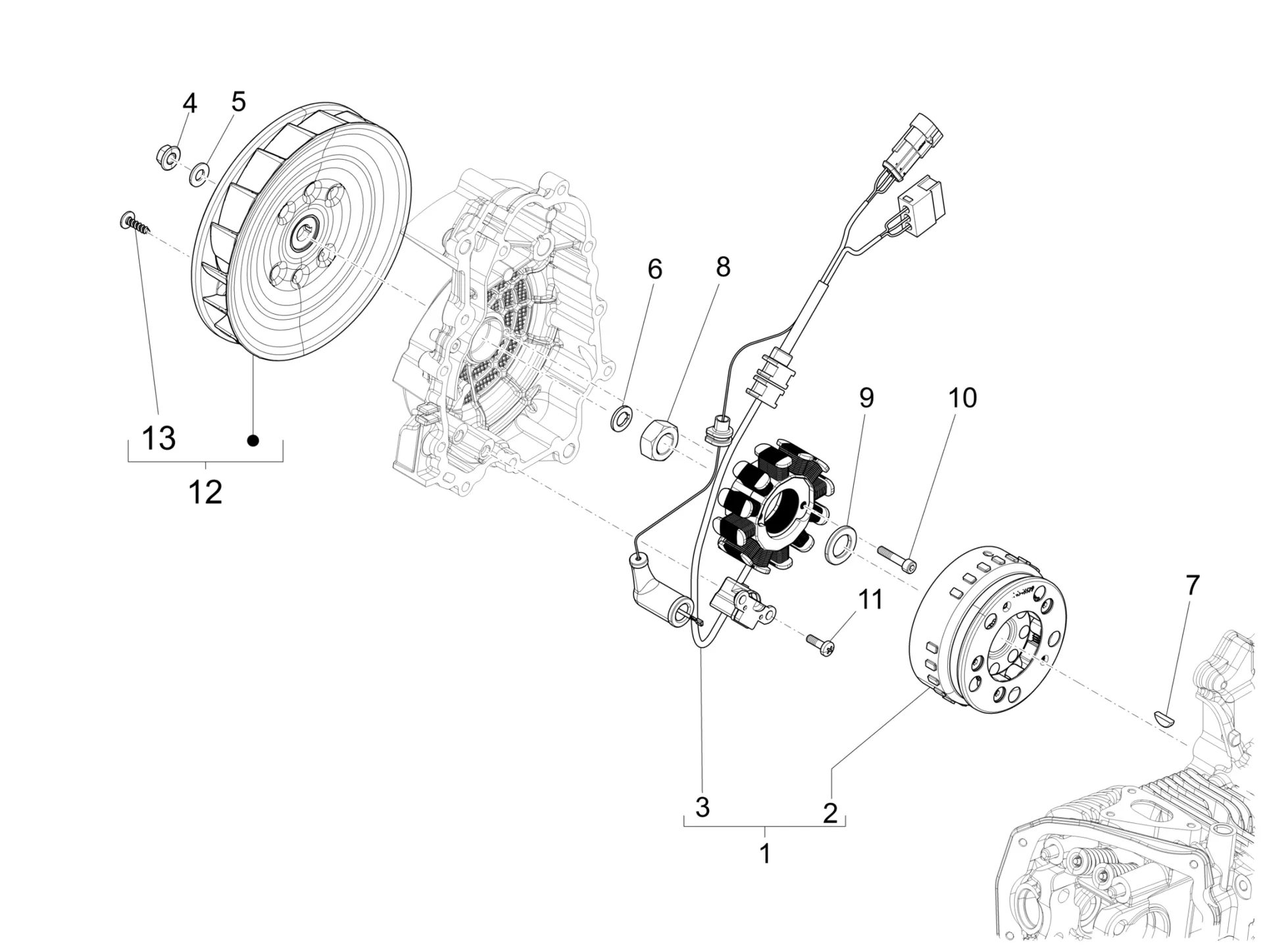

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/548/Vespa_LX_125_4T_3V_IE_2012-2013_01.21.PNG)
1 |
680207 - VOLANT MAGNET. More informationQuantity required : 0 |
||||||
|
1 |
B018107-VOLANT MAGNETIQUE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/9/img/94809.jpg)
2 |
ROTOR COMPLETE WITH WHEEL LIBRE OEM PIAGGIO 125 FLY, LIBERTY, VESPA GTS, VESPA LX, PRIMAVERA, SPRINT, VESPA-S (ENGINE 3 SOUPAPES ET IGET) 2020 <-B018108 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/6/3/img/92163.jpg)
3 |
STATOR OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016 > 2020-680205 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/0/3/img/94703.jpg)
3 |
STATOR OEM PIAGGIO 125 FLY, LIBERTY, LX, S 2012 > 2015-B016543 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/6/img/70536.jpg)
4 |
NUT FLANGE M8 X 1. 25 COMMON A LA RANGE PIAGGIO-874557 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
5 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 0 |
||||||
|
6 |
B015807-WASHER More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
7 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 0 |
||||||
|
8 |
841047-NUT More informationQuantity required : 0 |
||||||
|
9 |
877703-WASHER More informationQuantity required : 0 |
||||||
|
9 |
B018464-WASHER More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
10 |
SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
11 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/0/img/75350.jpg)
12 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A001379 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
13 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 0 |
