Vehicle Exploded View - VESPA VESPA LX 125 4T 3V IE 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

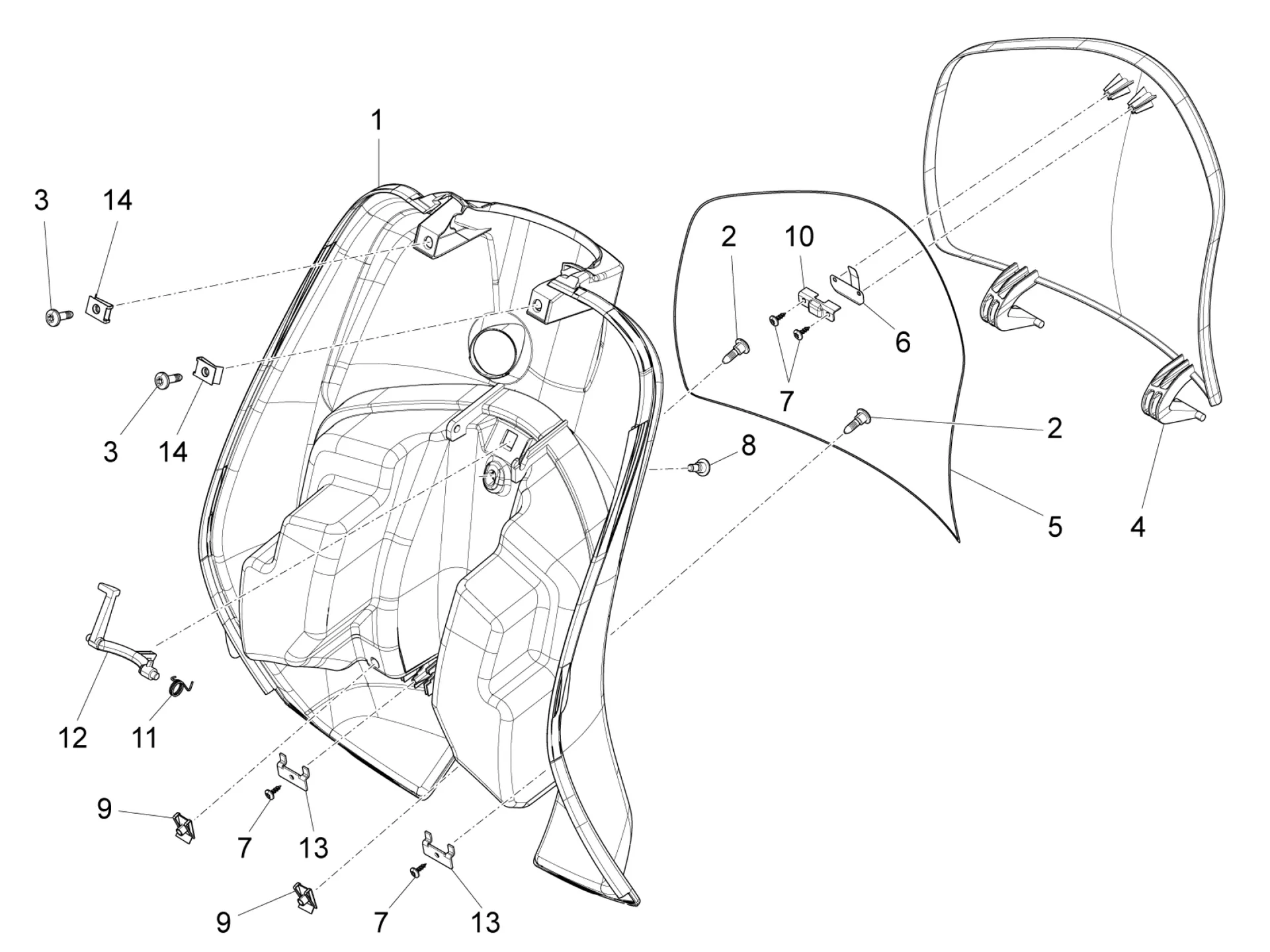

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/548/Vespa_LX_125_4T_3V_IE_2012-2013_02.30.PNG)
1 |
62217920EZ-UNDERSEAT COMPARTMENT A GANTS More informationQuantity required : 1 |
||||||
|
1 |
62217940BR - COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
1 |
62217940H8 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
62217940M5 - COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
1 |
62217940NL-UNDERSEAT COMPARTMENT More informationQuantity required : 1 |
||||||
|
1 |
62217940VM-UNDERSEAT COMPARTMENT A GANTS More informationQuantity required : 1 |
||||||
|
1 |
62217940XN2 - COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
1 |
622179 - COFFRE AV. More informationQuantity required : 1 |
||||||
|
1 |
62217950DE - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
62217950R7 - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
3 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
|
4 |
62211520EZ-DOOR UNDERSEAT COMPARTMENT AV More informationQuantity required : 1 |
||||||
|
4 |
62211540BR-DOOR UNDERSEAT COMPARTMENT AV More informationQuantity required : 1 |
||||||
|
4 |
62211540H8 - PORTE COFFRE AV More informationQuantity required : 1 |
||||||
|
4 |
62211540M5-DOOR UNDERSEAT COMPARTMENT AV More informationQuantity required : 1 |
||||||
|
4 |
62211540NL - PORTE COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/1/6/img/84216.jpg)
4 |
GLOVE COMPARTMENT COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX BLACK 98/A -62211540XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/0/1/img/151201.jpg)
4 |
DOOR DE UNDERSEAT COMPARTMENT FRONT UNPAINTED OEM PIAGGIO 50-125 VESPA LX, VESPA LXV-622115 More informationQuantity required : 1 |
||||||
|
4 |
62211550DE - PORTE COFFRE AV More informationQuantity required : 1 |
||||||
|
4 |
62211550R7-DOOR UNDERSEAT COMPARTMENT AV More informationQuantity required : 1 |
||||||
|
4 |
62211540VM - PORTE COFFRE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/8/img/66298.jpg)
5 |
GASKET DOOR DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, VESPA LX, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, 125-250-500 X9, BEVERLY-297275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/1/img/67091.jpg)
6 |
PLATE LATCH DOOR DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX-573057 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
7 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
8 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
10 |
BRACKET LATCH DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-252420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/3/img/66023.jpg)
11 |
SPRING DE LEVER DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX-257617 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/1/img/66281.jpg)
12 |
CROCHET OUVERTURE HATCH FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX 2006 >-295528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
13 |
BRACKET MOUNTING DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-257614 More informationQuantity required : 2 |
||||||
|
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
