Vehicle Exploded View - VESPA VESPA LX 125 4T 3V IE 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

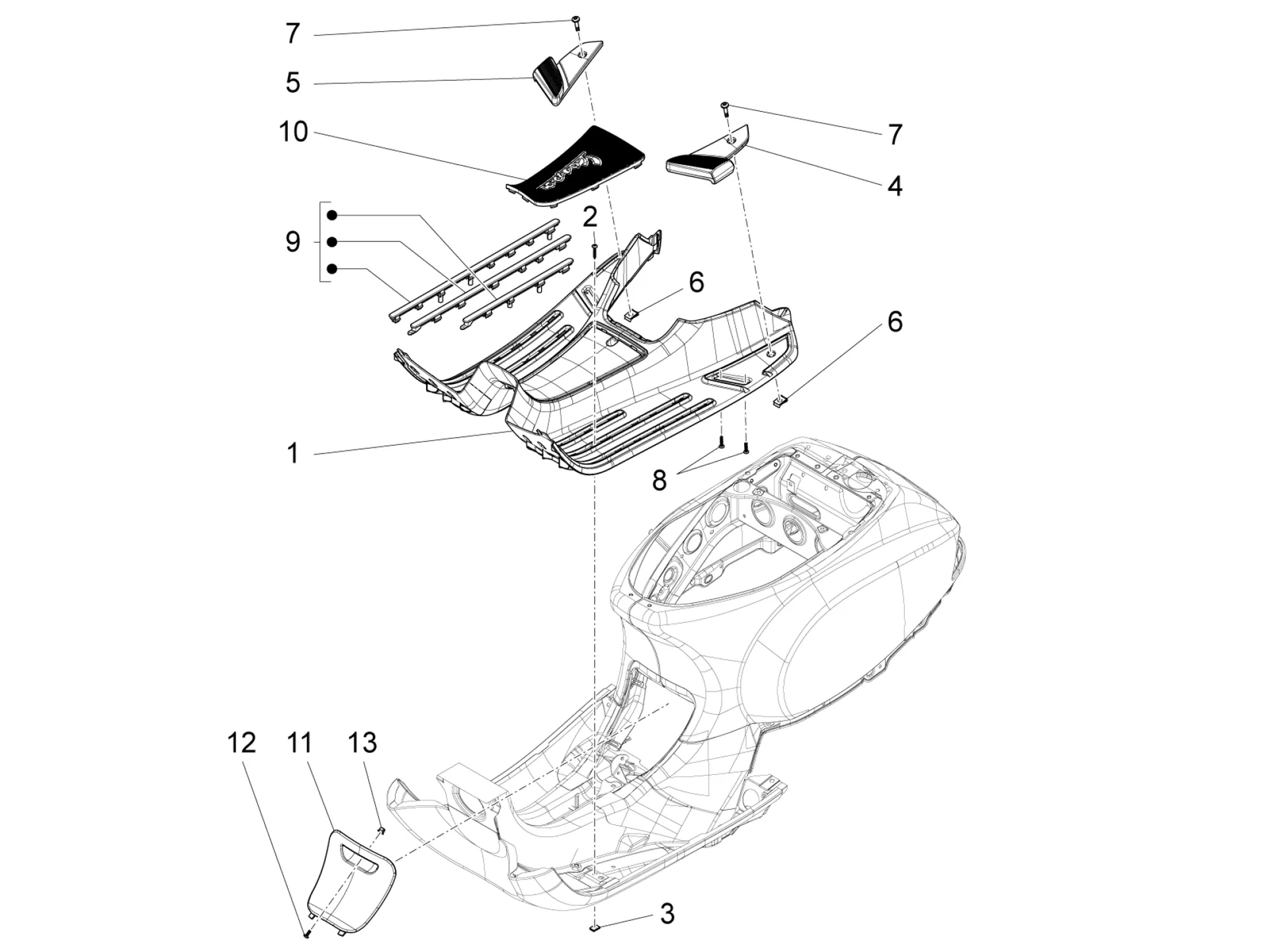

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/548/Vespa_LX_125_4T_3V_IE_2012-2013_02.31.PNG)
1 |
622124-PARTIE CENTRE UNPAINTED More informationQuantity required : 1 |
||||||
|
1 |
62212440BR-MAT CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
62212440DE - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
62212440EZ - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
62212440H8 - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
62212440M5 - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/7/7/img/84277.jpg)
1 |
FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S BLACK 85/B -62212440NL- More informationQuantity required : 1 |
||||||
|
1 |
FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -62212440R7- More informationQuantity required : 1 |
||||||
|
1 |
62212440VM - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/8/4/img/84284.jpg)
1 |
STEP FOOT/PLANCHER OEM PIAGGIO 50-125 LX VESPA 2006 > 2013 BLACK COMPETITION 98/A-62212440XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
2 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/8/6/img/84286.jpg)
4 |
REST-FOOT PASSENGER LEFT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-622125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/8/7/img/84287.jpg)
5 |
REST-FOOT PASSENGER REAR RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-622126 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/8/img/73368.jpg)
7 |
SCREW TORX (6X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179303 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
8 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/7/3/img/89673.jpg)
9 |
PROFIL STEP FOOT (KIT) OEM PIAGGIO 50-125 LX 2005 >-65712645 More informationQuantity required : 1 |
||||||
|
10 |
675041-MAT MILIEU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/0/5/img/84505.jpg)
11 |
HATCH DE SPARK PLUG FRONT OEM PIAGGIO 50-125 VESPA LX RED 584-62213670R7 More informationQuantity required : 1 |
||||||
|
11 |
62213600M5 - ABATTANT AVT More informationQuantity required : 1 |
||||||
|
11 |
62213600VM-LID SPARK PLUG More informationQuantity required : 1 |
||||||
|
11 |
62213600XN2 - ABATTANT AVT More informationQuantity required : 1 |
||||||
|
11 |
62213650BR - ABATTANT AVT More informationQuantity required : 1 |
||||||
|
11 |
62213650DE - ABATTANT AVT More informationQuantity required : 1 |
||||||
|
11 |
62213650EZ-LID AVT More informationQuantity required : 1 |
||||||
|
11 |
62213650NL-LID SPARK PLUG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/0/8/img/84508.jpg)
11 |
HATCH DE SPARK PLUG BRUTE OEM PIAGGIO 50-125 LX, S 2006 >-6221366 More informationQuantity required : 1 |
||||||
|
11 |
6221365000H8 - ABATTANT AVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
12 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
13 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 1 |
