Vehicle Exploded View - VESPA VESPA LX 125 4T 3V IE 2012-2013 VESPA

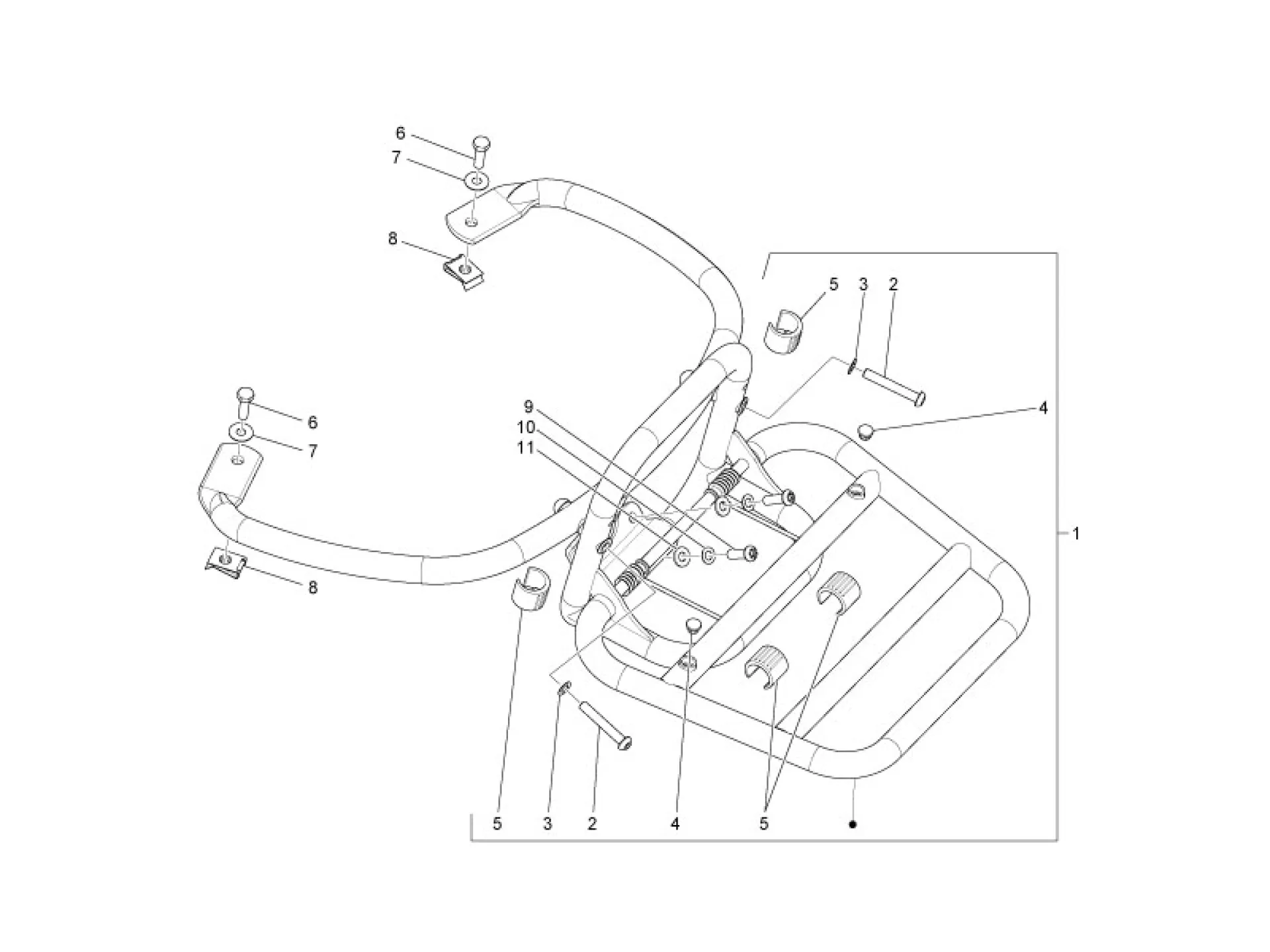

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
Porte-bagages arrière
Search
DOOR LUGGAGE REAR (MONTE OEM) OEM PIAGGIO 50-125 VESPA LX TOURING 2010 >-624616

1
P2R reference P2R reference 85350
Maker reference Maker reference 624616

DOOR LUGGAGE REAR (MONTE OEM) OEM PIAGGIO 50-125 VESPA LX TOURING 2010 >-624616

More information

Quantity required : 1

975669 - VIS

2
P2R reference P2R reference 94299
Maker reference Maker reference 975669

975669-SCREW

More information

Quantity required : 2

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

3
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

More information

Quantity required : 2

623561 - BOUCHON POIGNEE SELLE

4
P2R reference P2R reference 84855
Maker reference Maker reference 623561

623561-CAP GRIP SEAT

More information

Quantity required : 2

BUFFER DE DOOR LUGGAGE OEM PIAGGIO COMMON A LA RANGE VESPA-622554

5
P2R reference P2R reference 84624
Maker reference Maker reference 622554

BUFFER DE DOOR LUGGAGE OEM PIAGGIO COMMON A LA RANGE VESPA-622554

More information

Quantity required : 4

SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090

6
P2R reference P2R reference 65641
Maker reference Maker reference 0310905

SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090

More information

Quantity required : 2

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

7
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW TORX (6X20) OEM PIAGGIO COMMON A LA RANGE-623920

9
P2R reference P2R reference 67749
Maker reference Maker reference 623920

SCREW TORX (6X20) OEM PIAGGIO COMMON A LA RANGE-623920

More information

Quantity required : 2

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

10
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

11
P2R reference P2R reference 65362
Maker reference Maker reference 0137775

WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777

More information

Quantity required : 2
