Vehicle Exploded View - VESPA VESPA LX 125 4T 3V IE 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

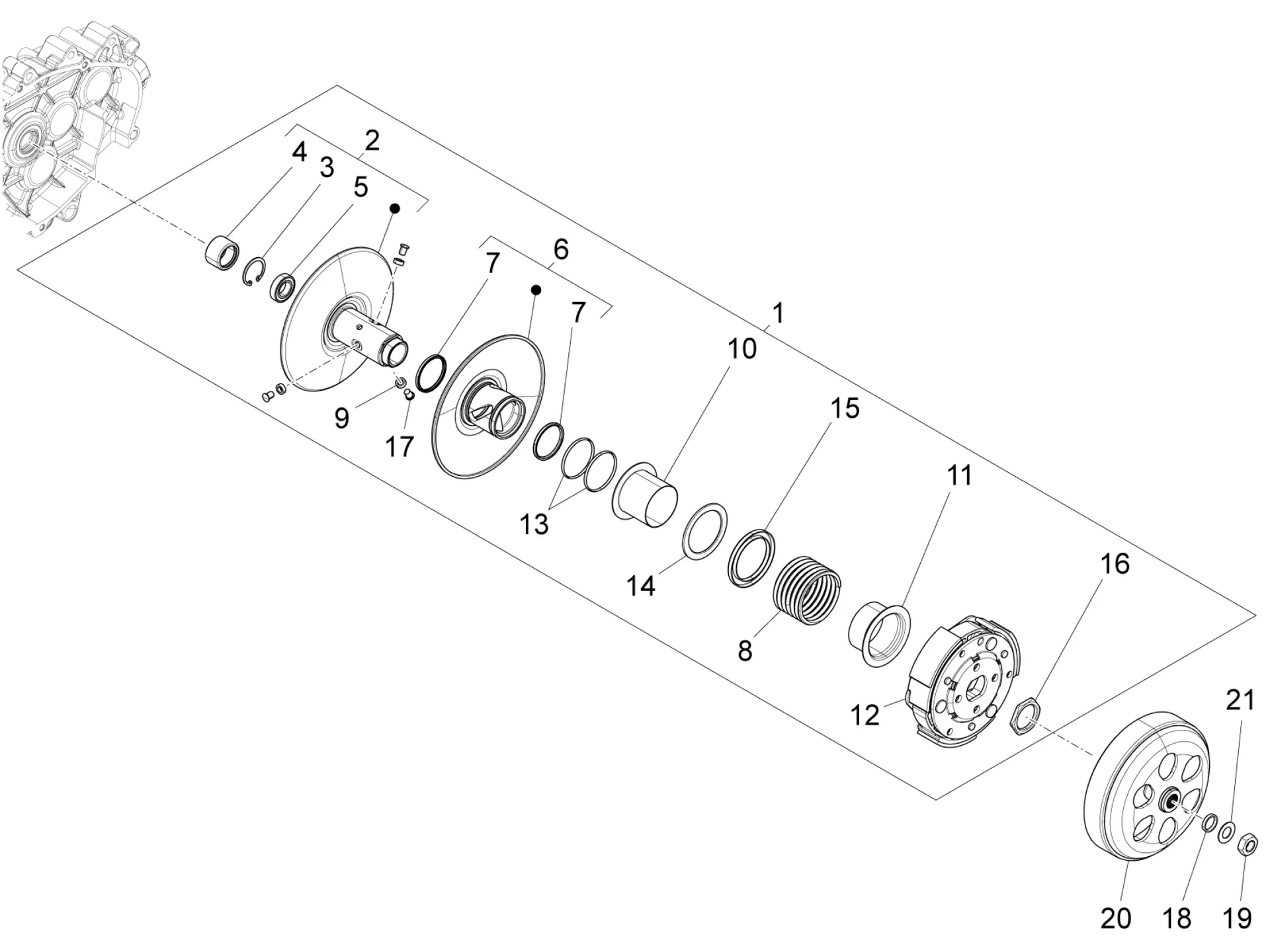

Moteur : 01.14 POULIE ENTRAINEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/548/Vespa_LX_125_4T_3V_IE_2012-2013_01.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/1/0/img/96210.jpg)
1 |
PULLEY WITH CLUTCH OEM PIAGGIO 125 FLY, VESPA LX, VESPA-S 2012 > 3 SOUPAPES-CM167101 More informationQuantity required : 1 |
||||||
1 |
CM167102-PULLEY WITH CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/5/3/img/94553.jpg)
2 |
HUB/FLASQUE FIXE DE PULLEY RECEPTRICE OEM PIAGGIO 125 FLY, VESPA LX, VESPA-S 2012 > 3 SOUPAPES-B014157 More informationQuantity required : 1 |
||||||
|
2 |
B017979-HALF PULLEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/8/img/73678.jpg)
3 |
CLIPS/CIRCLIPS CORRECTEUR DE COUPLE OEM PIAGGIO FLY 125-150, LIBERTY 125-150, MP3 125-250-300-400-500/125 VESPA LX, GTS, VESPA-S-006628 More informationQuantity required : 1 |
||||||
|
4 |
B014169 - DOUILLE More informationQuantity required : 1 |
||||||
|
5 |
880512-BEARING More informationQuantity required : 1 |
||||||
|
6 |
880538 - DEMI-POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/8/8/img/94788.jpg)
6 |
FLASQUE MOBILE DE PULLEY RECEPTRICE OEM PIAGGIO 125 FLY, VESPA LX, VESPA-S 2012 > 3 SOUPAPES-B017974 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/7/img/66237.jpg)
7 |
289950-BUSH More informationQuantity required : 2 |
||||||
|
8 |
B013304-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/3/img/66393.jpg)
9 |
BUSH DE PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE-431091 More informationQuantity required : 3 |
||||||
|
10 |
880539-BUSH More informationQuantity required : 1 |
||||||
|
11 |
880543-COUPELLE More informationQuantity required : 1 |
||||||
|
12 |
CM1672015-GROUP CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/1/img/66231.jpg)
13 |
GASKET CLUTCH OEM PIAGGIO 50-125 COMMON A LA RANGE-289840 More informationQuantity required : 2 |
||||||
|
14 |
880540-WASHER More informationQuantity required : 1 |
||||||
|
15 |
880541-COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/9/img/66239.jpg)
16 |
NUT CLUTCH OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-289955 More informationQuantity required : 1 |
||||||
|
17 |
B014466-PIVOT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/9/1/img/94591.jpg)
18 |
SPACER PULLEY ENTRAINEE OEM PIAGGIO 125 LIBERTY 2012 > 2015-B014652 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/4/9/img/72749.jpg)
19 |
NUT PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE-B016992 More informationQuantity required : 1 |
||||||
|
20 |
880623-TAMBOUR D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
1A004103-TAMBOUR D'EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
21 |
WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246 More informationQuantity required : 1 |
