Vehicle Exploded View - VESPA VESPA GTS 310 E5+ Livrea 80 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

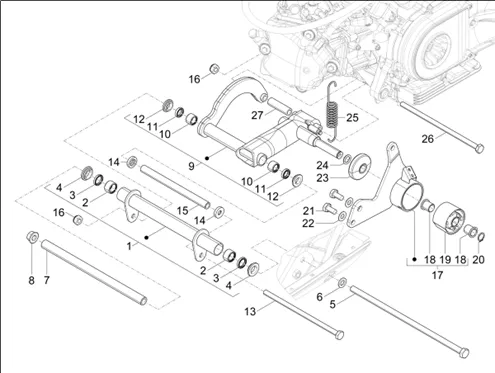

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1362/Vespa_GTS_310_E5_Livrea_80_EMEA_04.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/8/0/6/img/172806.jpg)
1 |
OEM MOPED SWINGARM COTE CADRE OEM PIAGGIO 300 GTS 2008 >-5A000479 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
2 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY-600161 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/3/8/1/img/177381.jpg)
3 |
1C004356R BUSH D'ETANCHEITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/5/img/82455.jpg)
4 |
BUSH DE OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-598917 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
5 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS-597914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.jpg)
6 |
WASHER DE OEM MOPED SWINGARM OEM PIAGGIO VESPA-266845 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/3/img/82313.jpg)
7 |
SPACER DE OEM MOPED SWINGARM (290 MM) OEM PIAGGIO 125-250-300 VESPA GTS-597857 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
8 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
9 |
1C007702 - BRAS OSCILLANT CôTÃ- MOTEUR COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
10 |
BUSH/GASKET ARTICULATION OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/8/img/127508.jpg)
11 |
BUSH ETANCHEITE OEM MOPED SWINGARM OEM PIAGGIO 125 LIBERTY, SPRNT, PRIMAVERA 2015 >, 350-400 MP3 2018 >, 50 ZIP 2018 >-1C001341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
12 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
|
13 |
271779-BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/6/img/68166.jpg)
14 |
SPACER DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS/GILERA 125-300 NEXUS-650755 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/9/img/72979.jpg)
15 |
SPACER DE OEM MOPED SWINGARM 189MM OEM PIAGGIO 125-250-300 VESPA GTS/GILERA 125-300 NEXUS-CM067806 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
17 |
1C007706-FLANGE DE BRACKET RUBBER MOUNT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
18 |
BUSH FOR RUBBER MOUNT DE OEM MOPED SWINGARM ENGINE OEM PIAGGIO COMMON A LA RANGE-273460 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
19 |
RUBBER MOUNT ENGINE OEM PIAGGIO 125-250 MP3 2007 >, 125 X8 2004 >, X9 2003 >, X-EVO 2007 >, X10 2012 >, VESPA GTS 2007 >/GILERA 125-250 NEXUS 2007 >, RUNNER 2005 >/APRILIA 125 SR-MAX 2011 >-272750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
20 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
21 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
22 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/7/8/img/82478.jpg)
23 |
RUBBER MOUNT DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125-300-350 BEVERLY, 125-300 YOURBAN, 125 X10-599250 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/7/img/68917.jpg)
24 |
O-RING (14. 6X20. 8X3. 4) OEM PIAGGIO COMMON A LA RANGE-830434 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/3/img/82463.jpg)
25 |
SPRING DE OEM MOPED SWINGARM OEM PIAGGIO VESPA GTS 2007 > 2016 LONGEUR 118MM DIAMETRE 22MM-599059 More informationQuantity required : 1 |
||||||
|
26 |
1C008005-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/4/img/82464.jpg)
27 |
SPACER OEM MOPED SWINGARM OEM APRILIA 125 SR GT 2021 >-599077 More informationQuantity required : 1 |
