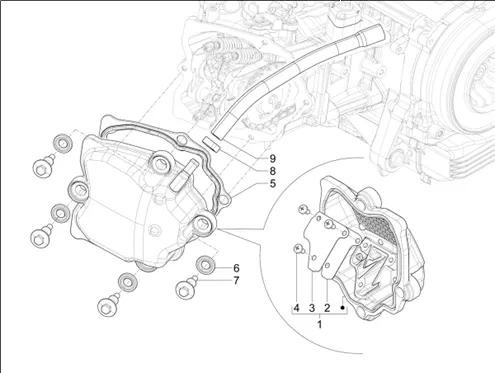

Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1362/Vespa_GTS_310_E5_Livrea_80_EMEA_01.12.png)
1 |
1A024321 - COUVRE-CULASSE COMPLET More informationQuantity required : 1 |
||||||
|
2 |
1A024324 - BLOW-BY SHEET More informationQuantity required : 1 |
||||||
|
3 |
1A024325 - JOINT BLOW-BY More informationQuantity required : 1 |
||||||
|
4 |
1A026809-SELF-TAPPING SCREW WITH TRILOBE SECTION More informationQuantity required : 3 |
||||||
|
5 |
1A024705 - JOINT COUVERCLE-CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
6 |
GASKET OF SCREW COVER DE CYLINDER HEAD OEM PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO-830249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/6/img/70436.jpg)
7 |
SCREW COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-872635 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/0/img/72880.jpg)
8 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001921 More informationQuantity required : 1 |
||||||
|
9 |
1A028474-RENIFLARD More informationQuantity required : 1 |
