Vehicle Exploded View - VESPA VESPA GTS 310 E5+ Livrea 80 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

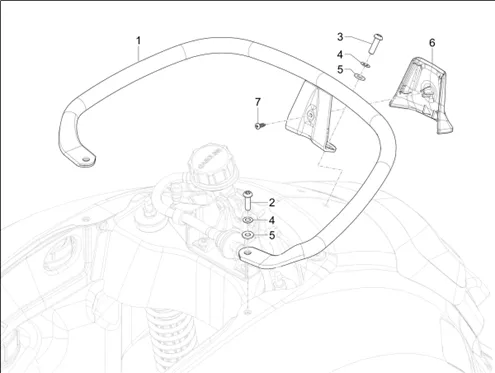

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1362/Vespa_GTS_310_E5_Livrea_80_EMEA_02.44.png)
1 |
1B013466-REAR HANDLEBAR WITH I. P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/0/6/img/41506.jpg)
2 |
SCREW TORX HEAD BOMBEE (6X40) OEM PIAGGIO COMMON A LA RANGE-878439 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/9/img/67749.jpg)
3 |
SCREW TORX (6X20) OEM PIAGGIO COMMON A LA RANGE-623920 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
4 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
5 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 4 |
||||||
|
6 |
CM348907-COVER GREEN V37 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
7 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 1 |
