Vehicle Exploded View - VESPA VESPA GTS 310 E5+ Livrea 80 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

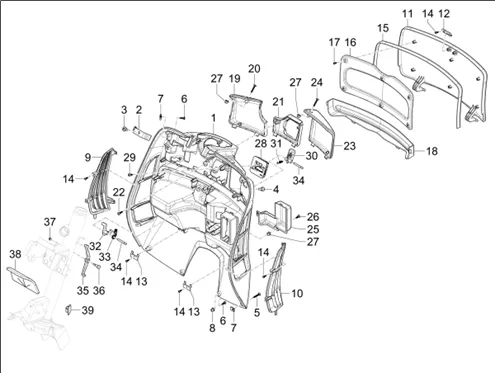

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1362/Vespa_GTS_310_E5_Livrea_80_EMEA_02.30.png)
1 |
1B012202000V33-FRONT GLOVE COMPARTEMENT More informationQuantity required : 1 |
||||||
|
1 |
1B012202-FRONT GLOVE COMPARTEMENT More informationQuantity required : 1 |
||||||
|
2 |
1B006769-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
3 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
4 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/2/img/96282.jpg)
5 |
SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
6 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
8 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 2 |
||||||
|
9 |
1B009611-FRONT GLOVE COMPARTMENT RIGHT GRID More informationQuantity required : 1 |
||||||
|
10 |
1B009610-FRONT GLOVE COMPARTMENT LEFT GRID More informationQuantity required : 1 |
||||||
|
11 |
57717500V33-COVER DOOR GLOVE-COMPARTMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/0/9/2/img/81092.jpg)
11 |
DOOR DE UNDERSEAT COMPARTMENT/BOX A GANTS OEM PIAGGIO 125-250-300 VESPA GTS UNPAINTED-577175 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
12 |
BRACKET LATCH DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-252420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
13 |
BRACKET MOUNTING DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-257614 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
14 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/3/img/72903.jpg)
15 |
GASKET DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125-250-300 VESPA GTS, 125-350 X10, BEVERLY 2021 <-CM006311 More informationQuantity required : 1 |
||||||
|
16 |
CONTRE DOOR DE BOX A GANT OEM PIAGGIO VESPA 125-250-300 GTS-577468 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
17 |
SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141 More informationQuantity required : 6 |
||||||
|
18 |
1B009427-INSIDE FRAME More informationQuantity required : 1 |
||||||
|
19 |
1B009436000V39-RIGHT COVER PORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/1/img/96281.jpg)
20 |
SCREW TORX (4. 2X27) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178607 More informationQuantity required : 1 |
||||||
|
21 |
1B009744000V39-CENTRAL COVER PORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
22 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 2 |
||||||
|
23 |
1B009435000V39-LEFT COVER PORT More informationQuantity required : 1 |
||||||
|
24 |
SCREW TORX (4. 2X27) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178607 More informationQuantity required : 1 |
||||||
|
25 |
1B009743-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
26 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
||||||
|
27 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 4 |
||||||
|
28 |
1B009428-HANDBAG HOLDER COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
29 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/7/img/67167.jpg)
30 |
LEVER DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/1/img/81221.jpg)
31 |
SPRING OF RETURN OEM PIAGGIO COMMON A LA RANGE-577399 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/9/img/67119.jpg)
32 |
CROCHET LATCH UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-575607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/0/4/img/140004.jpg)
33 |
SPRING LEVER LATCH DE VIDE POCHE FRONT OEM PIAGGIO COMMON A ALA RANGE MAXI SCOOTER 125-250-300-1B003658 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/2/img/81222.jpg)
34 |
SPINDLE/PIVOT DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/4/5/img/81245.jpg)
35 |
LEVER LOCK DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125/250/300 GTS, GT, GTV < 2007-577453 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
36 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
37 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 1 |
||||||
|
38 |
620693-REVETEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/1/img/67161.jpg)
39 |
CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594 More informationQuantity required : 1 |
