Vehicle Exploded View - VESPA VESPA GTS 310 E5+ Livrea 80 (EMEA) VESPA

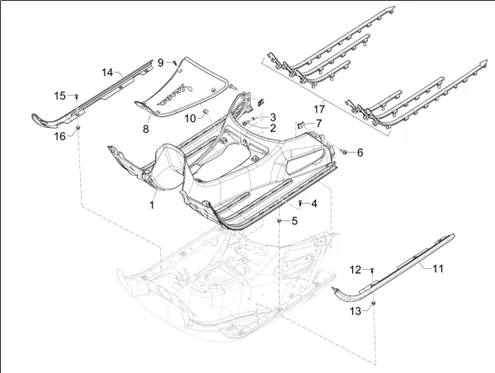

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
Protection centrale - Repose-pieds
Search
1B009618000V33 - FOOTREST

1
P2R reference P2R reference 228320
Maker reference Maker reference 1B009618000V33

1B009618000V33-FOOTREST

More information

Quantity required : 1

1B009618 - FOOTREST

1
P2R reference P2R reference 200897
Maker reference Maker reference 1B009618

1B009618-FOOTREST

More information

Quantity required : 1

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

2
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

More information

Quantity required : 1

WASHER PLATE (6. 2X8. 6X1) OEM PIAGGIO COMMON A LA RANGE-641548

3
P2R reference P2R reference 67934
Maker reference Maker reference 641548

WASHER PLATE (6. 2X8. 6X1) OEM PIAGGIO COMMON A LA RANGE-641548

More information

Quantity required : 1

SCREW TORX (4. 2X21. 5) TARAUD DE FAIRING OEM PIAGGIO COMMON A LA RANGE-CM178604

4
P2R reference P2R reference 73359
Maker reference Maker reference CM178604

SCREW TORX (4. 2X21. 5) TARAUD DE FAIRING OEM PIAGGIO COMMON A LA RANGE-CM178604

More information

Quantity required : 7

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

5
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 7

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

6
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

1B010637000V39 - BATTERY BOX COVER COMPLETE

8
P2R reference P2R reference 228321
Maker reference Maker reference 1B010637000V39

1B010637000V39-BATTERY BOX COVER COMPLETE

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

9
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 4

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 4

1B009646000V37 - LEFT EDGE FOOTREST

11
P2R reference P2R reference 228322
Maker reference Maker reference 1B009646000V37

1B009646000V37-LEFT EDGE FOOTREST

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

12
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 4

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

13
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 5

1B009647000V37 - RIGHT EDGE FOOTREST

14
P2R reference P2R reference 228323
Maker reference Maker reference 1B009647000V37

1B009647000V37-RIGHT EDGE FOOTREST

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

15
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 4

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

16
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 5

1B010631000V39 - FLOORBOARD STRIPS GROUP

17
P2R reference P2R reference 228324
Maker reference Maker reference 1B010631000V39

1B010631000V39-FLOORBOARD STRIPS GROUP

More information

Quantity required : 1
