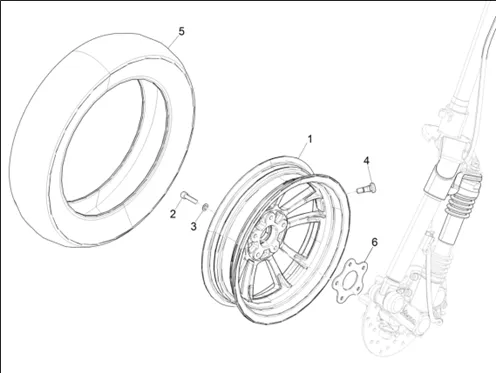

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1287/Vespa_Elettrica_2018_(EMEA)_04.11.png)
1 |
1C003563-FRONT WHEEL (3, 00 X 12 ") More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
2 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
5 |
1C003736-TYRE 110/70-12 " More informationQuantity required : 1 |
||||||
|
6 |
1C004342-CIRCLIPS More informationQuantity required : 1 |
