Vehicle Exploded View - VESPA VESPA ELECTTRICA 0 Vespa Elettrica 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

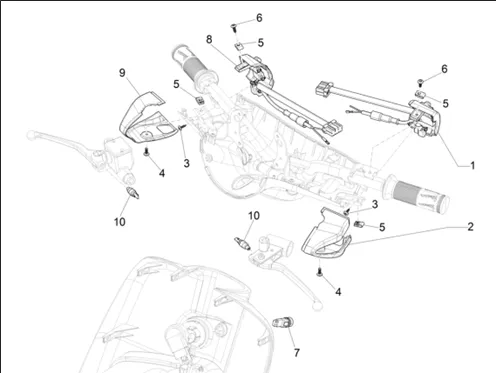

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1287/Vespa_Elettrica_2018_(EMEA)_06.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/6/3/img/151363.jpg)
1 |
COMMODO/SWITCH LEFT CHROME BRILLANT OEM PIAGGIO 125 VESPA PRIMAVERA, SPRINT 2016 > 1D002469 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/6/4/img/151364.jpg)
2 |
COVER DE COMMODO LEFT CHROME OEM PIAGGIO 50-125 PRIMAVERA, SPRNT 2016 >-1B005436 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
3 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
4 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
5 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/1/img/67271.jpg)
7 |
BUTTON/CONTACTEUR OUVERTURE DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582988 More informationQuantity required : 1 |
||||||
8 |
1D001984-DISPOSITIF More informationQuantity required : 1 |
||||||
|
9 |
COVER DE COMMODO LEFT CHROME OEM PIAGGIO 50-125 PRIMAVERA, SPRNT 2016 >-1B005436 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
10 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 2 |
